Managed Industrial Ethernet Switch 8 Port 10 100 1000T To 2 Port 100 1000BASE-X SFP
Managed Industrial 8-port 10 100 1000T To 2-port 100 1000BASE-X SFP Ethernet Switch
8-Port Gigabit Ethernet Switch Advantages
► 8x10/100/1000Base-TX RJ45 ports, 2x100/1000Base-X SFP ports
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► Provide SC/FC/ST/LC fiber port (optional), support single/dual fiber transmission
► Electric 4KV surge protection, easy to use in outdoor environment
► Power input polarity protection design, no worry about wrong operation
Managed Fiber Network Switch Technical Indexes
|
RJ45 port and speed |
8x10/100/1000Base-TX |
|
Fiber port and speed |
2x1000Base-FX SFP (Dual Mode, Auto Detection) |
|
Packet buffer |
4Mbits |
|
Maximum packet length |
Up to 1532Bytes |
|
MAC address table |
8K |
|
Transmission mode |
Store and Forward(full/half duplex mode) |
|
Exchange property |
Delay time: < 7μs |
|
Power access mode |
Phoenix terminal, DC seat |
|
Redundant power input |
DC 9-56V / DC 5V |
|
Protection grade |
IP40 aluminum case |
|
Cooling mode |
Natural cooling, no fan design |
|
Dimensions |
138mm x 106mm x 41mm (L x W x H) |
|
Installation mode |
DIN trail/wall-mountable |
|
Weight |
600g |
|
Operating Temperature |
-40℃~80℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage Temperature |
-40℃~80℃ |

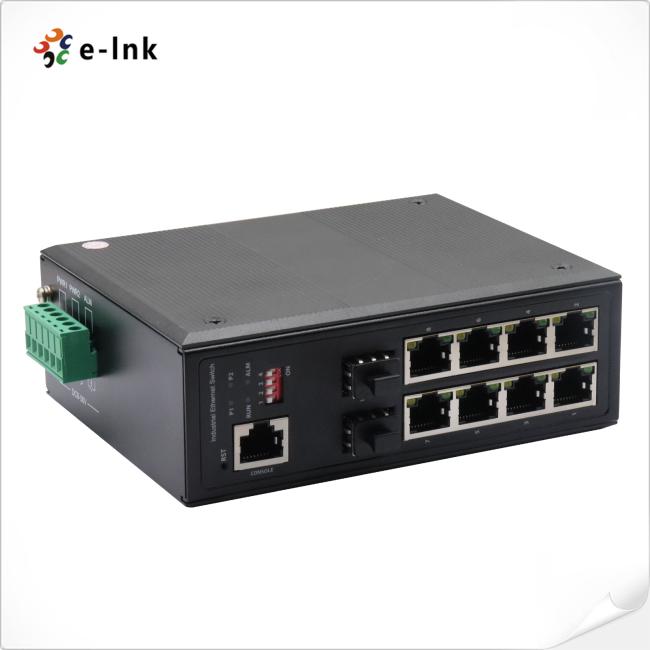

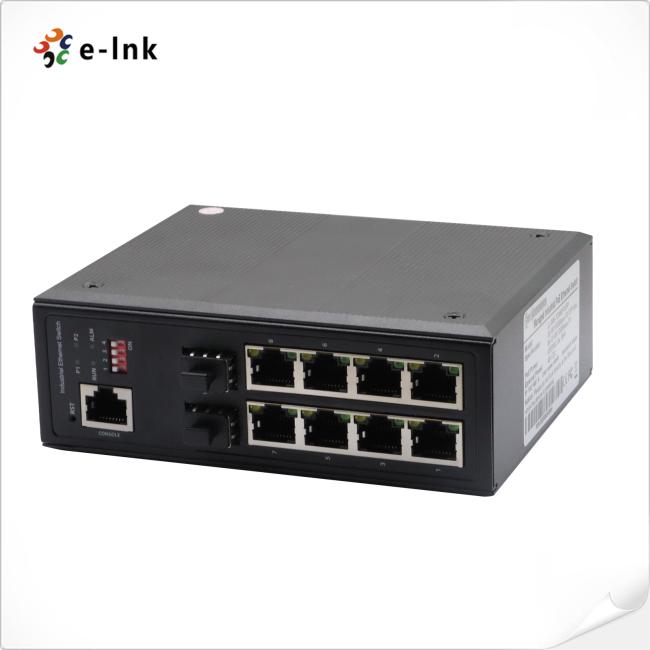

Din Rail 8-port RJ45 To 2-port SFP Fiber Ethernet Switch Overview
LNK-GYM7208G-SFP Serie is a new generation industrial Managed switch with 8-Port 10/100/1000Base-TX and 2-Port 100/1000Base-X SFP that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users.
Copper to Fiber Network Switch Ordering Information
|
Model |
Description |
|
LNK-GYM7208G-SFP |
Managed 8-Port 10/100/1000Base-T + 2-Port 100/1000Base-X SFP Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
|
Power Options |
►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately. |
