Industrial L2+ Managed Fiber Optic Switch 12 Port 1000X SFP + 2 Port 1000X SFP Fiber
Fiber Optic Switch Industrial L2+ Managed 12-Port 1000X SFP + 2-Port 1000X SFP Fiber Switch
Fiber Optic Switch Advantages
► Support 12x1000Base-X SFP + 2x1000Base-X SFP
► DIP Switch supports one-key VLAN, one-key Ring Management
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 10K Bytes Jumbo Frame
Fiber Optic Switch Technical Indexes
| Software Features | ||||
| Redundancy Protocols | Support STP/RSTP/MSTP/ERPSv2, Link Aggregation | |||
| Multicast Support | Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q | |||
| VLAN | Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN, | |||
| Time Management | SNTP | |||
| QOS |
Flow-based redirection Flow-based rate limiting |
|||
| ACL |
Port-based Issuing ACL ACL based on port and VLAN |
|||
| Diagnostic Maintenance | Support port mirroring, Syslog, Ping | |||
| Management Function | Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT | |||
| Alarm Management | Support 1 way relay alarm output, RMON, TRAP | |||
| Security |
Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0 Support DHCP Snooping, Option 82,802.1X security access, |
|||
Fiber Optic Switch Overview

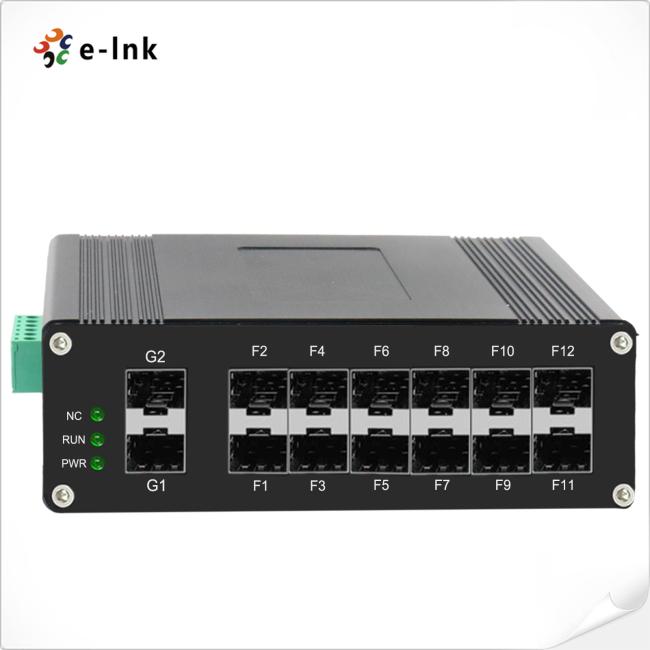

ETH-DIMC2012FM series is an Industrial 14 Port L2+ Managed Gigabit SFP Switch. It comprises of a 12-Port 100/1000Base-X SFP fiber optic interface and 2 extra 1.25G SFP interfaces delivered in an IP40 case with redundant power system, being able to operate under the temperature range from -40 to 80 Degree Celsius.
Ordering Information
| Model | Description | |
|
ETH-DIMC2012FM |
|
|
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page | |
| ► SFP module is to be purchased separately. |
