Mini Managed Ethernet Switch 8 Port 1000T 802.3at PoE + 2 Port 1000X SFP
Price:
USD99/PCS
MOQ:
1pcs
Delivery Time:
3-5 working days
Brand:
E-link
Product Description

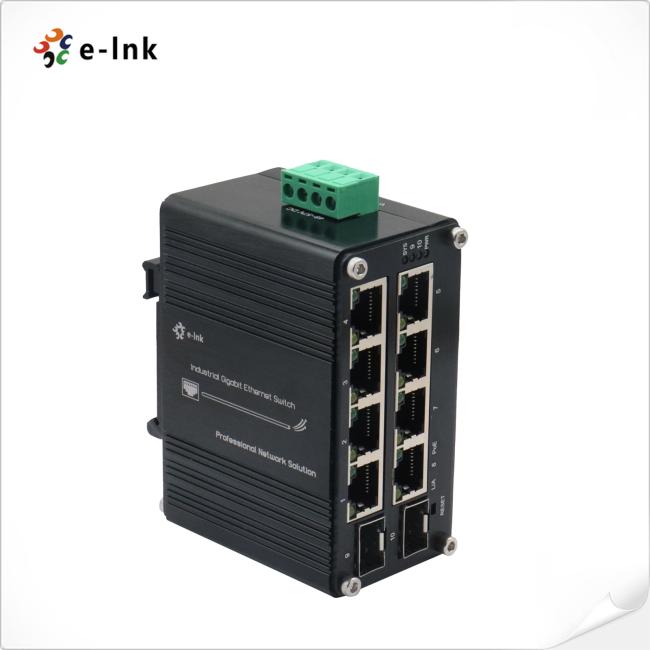

Mini Industrial Managed 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Ethernet Switch
Product Description
Overview
LNK-IMC208SGP-SFP, a managed industrial network switch, with an 8 ports 10/100/1000Base-TX + 2 port 100/1000Base-X SFP. The Switch provides 8 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100/1000Base-X SFP supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Features
- 8x10/100/1000Base-TX + 2x100/1000Base-X SFP
- 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
- Supports WEB Management
- Supports IEEE 802.3at PoE+ (30W per port)
- Supports 802.3x Flow Control
- Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x store and forward mode
- Support IEEE 802.3D/W/S standard STP/RSTP protocol
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Redundant Power Inputs
- Supports DIN-Rail installation
- -40°C to 80°C (-40°F to 176°F) operating temperature.
Technical Indexes
| Ethernet | |
| Backplane bandwidth | 20Gbps |
| Packet Buffer Memory: | 9216 bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 4K MAC Addresses |
| Interface | |
| Connector: | 8 x RJ45 |
| Optical Port: | 2 x 100/1000Base-X SFP |
| PoE (Power over Ethernet) | |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 240-watt PoE budget |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC, Redundant Power (4-pin Terminal Block) |
| Power Consumption: | 5W Max.(PoE in Use<240W) |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Software Features | |
| Redundancy Protocols | Support STP/RSTP |
| Multicast Support | Support IGMP Snooping V1/V2/V3 |
| VLAN | Support IEEE 802.1Q 4K VLAN |
| QOS | Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight |
| Diagnostic Maintenance | Support port mirroring, Syslog, Ping |
| Management Function | WEB |
| Security | Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint |
