IP40 Aluminum Case Industrial PoE Switch 4 Port 802.3bt PoE Out 2 Port 100/1000X SFP
Din Rail Industrial Unmanaged PoE Switch 802.3bt 90W
4 Port 10/100/1000T 802.3bt + 1 Port 10/100/1000T + 2 Port 100/1000X SFP
PoE Switch 5 Ports Gigabit 802.3bt Advantages
► 5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
► 2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver in dual modes
► Complies with IEEE 802.3bt PoE Standard
► Up to 4 ports of IEEE 802.3bt/at/af devices powered
► Supports PoE power up to 95 watts for each PoE port

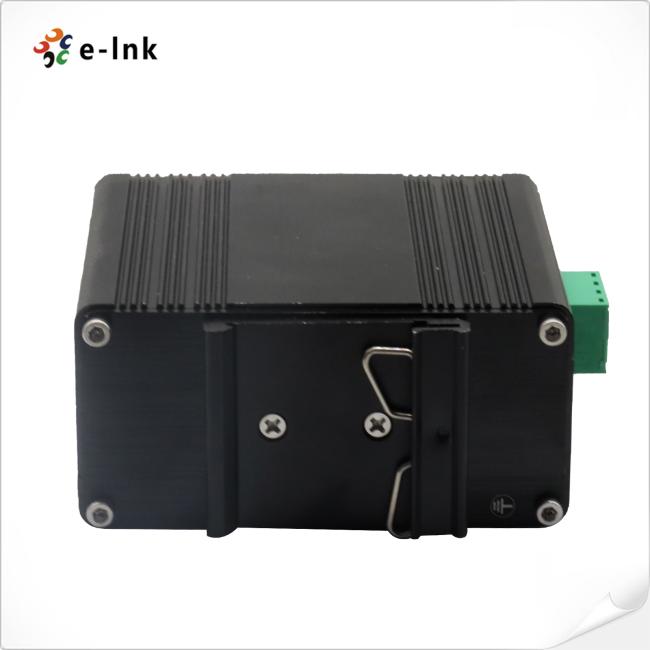

► Supports DIN-Rail installation
PoE Network Switch with 5-Ports RJ45 Technical Indexes
|
Exchange Property |
Backplane bandwidth: 14Gbps; Packet forwarding rate: 14.88Mpps |
|
Connector |
4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
|
Copper Port |
5 x RJ45 (4-Port 802.3at PoE Out) |
|
Optical Port |
2 x SFP 1000Base-X or 100Base-FX (auto detection) |
|
PoE Standard |
IEEE802.3af/at/bt |
|
Power Pin Assignment |
Pair 1 End-span: 1/2(-), 3/6(+) Pair 2 Mid-span: 4/5(+), 7/8(-) 802.3bt/PoH: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
|
PoE Budget |
Up to 360-watt PoE budget |
|
Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Input Power |
48~57VDC (Terminal Block) |
|
Power Consumption |
382W Max. (PoE in use) |
|
<5W (PoE not in use) |
|
|
Power Input Overload |
Automatic Resettable |
|
Reverse Polarity |
Present |
|
Dimensions (LxWxH) |
95 x 88 x 46mm |
|
Weight |
300g |
|
Casing |
Aluminum Case |
Din Rail PoE Switch 5 port Gigabit Overview
LNK-IMC205GHP-SFP adopts the IEEE 802.bt PoE++ standard and PoH technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as: PoE PTZ speed dome cameras, Thin clients, AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks, Remote digital signage displays and PoE lightings.
Industrial 5 Port PoE Switch With 1-port Uplink RJ45 Ordering Information
|
Model |
Description |
|
LNK-IMC205GHP-SFP |
Industrial 4-Port 10/100/1000T 802.3bt 90W PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Gigabit Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; |
|
Power Options |
► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
|
► Power Supply is to be purchased separately |
