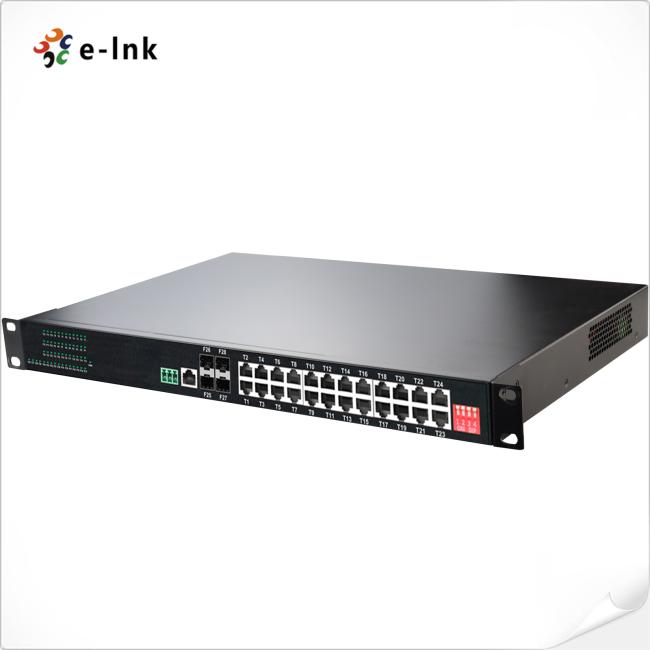

Rackmount Industrial L2+ Managed Switch 24 Port 1000T 802.3at PoE + 4 Port 1000X SFP
Price:
USD389/PCS
MOQ:
1pcs
Delivery Time:
3-5 working days
Brand:
E-link
Product Description
Rackmount Industrial L2+ 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch
Product Description
Overview
ETH-IMC2424MP Series is the L2+ managed rackmount 24-port 10/100/1000Base-T 802.3at PoE + 4-port 1000Base-X SFP hardened
Ethernet switch. The Switch has 24 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Features
- Support 24x10/100/1000Base-T + 4x1000Base-X SFP + 1xRS485
- 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
- IEEE802.3af/at compliant
- DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
- Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
- 10K Bytes Jumbo Frame
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- IP40 Aluminum Case
- Supports 1U 19” Rackmount installation
- -40°C to 80°C (-40°F to 176°F) operating temperature
Technical Indexes
| Ethernet | ||||
| Packet Buffer Memory: | 12M bits | |||
| Processing Type: | Store-and-Forward | |||
| Backplane bandwidth | 110Gbps | |||
| Max Packet Length: | 10K Bytes Jumbo Frame | |||
| Address Table Size: | 8K MAC Addresses | |||
| Interface | ||||
| Connector: | 24 x RJ45 | |||
| RS485: | 1 x RS485 (Optional) | |||
| Optical Port: | 4 x 1000Base-X SFP | |||
| USB-C: | 1 x USB-C (for Management) | |||
| PoE (Power over Ethernet) | ||||
| PoE Budget: | Up to 720-watt PoE budget | |||
| DIP Switch | ||||
| 4-digit DIP switch function | DIP | Function | Settings | |
| SW 1 | VLAN | ON - Enabled | OFF - Disabled | |
| SW 2 | Ring Management | ON - Enabled | OFF - Disabled | |
| SW 3 (to be upgraded) | 250m PoE Network | ON - Enabled | OFF - Disabled | |
| SW 4 (to be upgraded) | PoE Reset | ON - Enabled | OFF - Disabled | |
| Mounting Options: | Rackmount | |||
| Software Features | ||||
| Management Function | Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT | |||
| Advance Layer 2+ Features |
IPv4/IPv6 Management Static Route |
|||
