3G SDI Fiber Extender With Tally Or Reverse RS485 LC Fiber Connector 40KM
3G SDI Fiber Converter With Tally Or Reverse RS485 LC Fiber Connector 40KM
3G SDI Fiber Extender Advantages
► Directly compatible with HD-SDI camera system
► Long transmission capacity up to 80 kilometers
► Process all pathological modes, fully digital uncompressed broadcast level transmission
► LED status indication for monitoring working conditions
► Super optical dynamic range, freely adjustable
► 1470-1610nm CWDM wavelength selectable

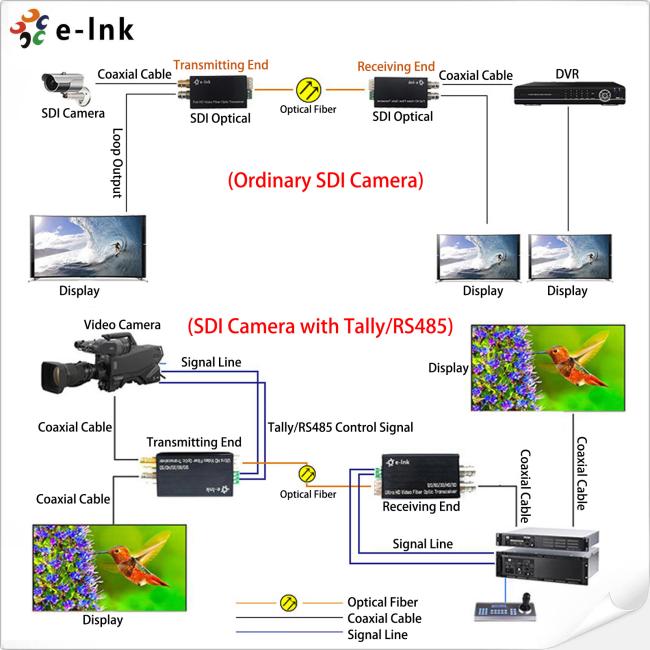

3G SDI Fiber Transmitter Receiver Application
► Animal film recording
► Fiber optic live streaming activities
► High performance (error free) Réseau Sentinelles of military or security departments
► Large video wall system
► Intelligent Traffic Monitoring System
► Industrial monitoring (power, chemistry, steel, petroleum, railways, etc.)
► Military monitoring (warehouses, borders, guards, etc.)
► Stadium (for on-site high-definition video and audio transmission)
HD/3G-SDI Video Over Fiber Extender Technical Indexes
|
SDI Fiber Optical interface |
|
|
Fiber interface |
Simplex LC |
|
Transmission distance |
550m-20Km |
|
Wavelength |
1310nm/1550nm |
|
SDI Video |
|
|
Video interface |
BNC |
|
Video input/output impedance |
75Ω |
|
Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 3.2Gb/s |
|
Differential gain (10%～90% APL) |
<1% |
|
SDI format support |
625/25 PAL |
|
525/29.97 NTSC, 525/23.98 NTSC |
|
|
720p50, 720p59.94 |
|
|
1080i 23/24/30/50/59.94 |
|
|
1080P 23.98/24/30/50/60 |
|
|
Video SDI standard |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
|
SMPTE425M3Gb/s Mapping(3G-SDI) |
|
|
SMPTE424M 3Gb/s serial interface(3G-SDI) |
|
|
Data |
|
|
Physical interface |
Industrial standard screw terminal |
|
Data type |
Tally or Reverse RS485 |
|
Frequency/Rate support |
Max. 115200bps for RS422 Max. 57600bps for RS485 |
|
BER |
<10ˉ9 |
|

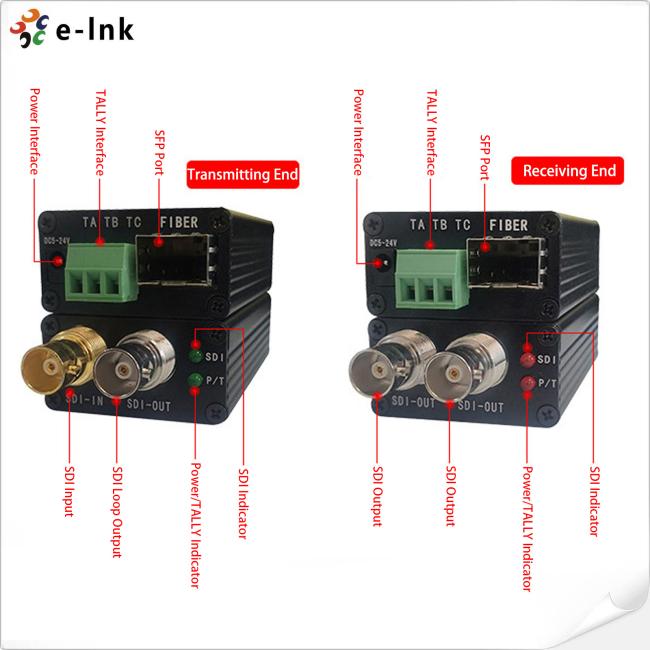

LED Indicator |
|
|
SDI |
SDI video |
|
P/T |
Power Supply |
|
Environmental |
|
|
Working Temperature |
-20℃～+70℃ |
|
Storage Temperature |
-40℃～+80℃ |
|
Working Humidity |
0~95% |
|
MTBF |
≥100000 hours |

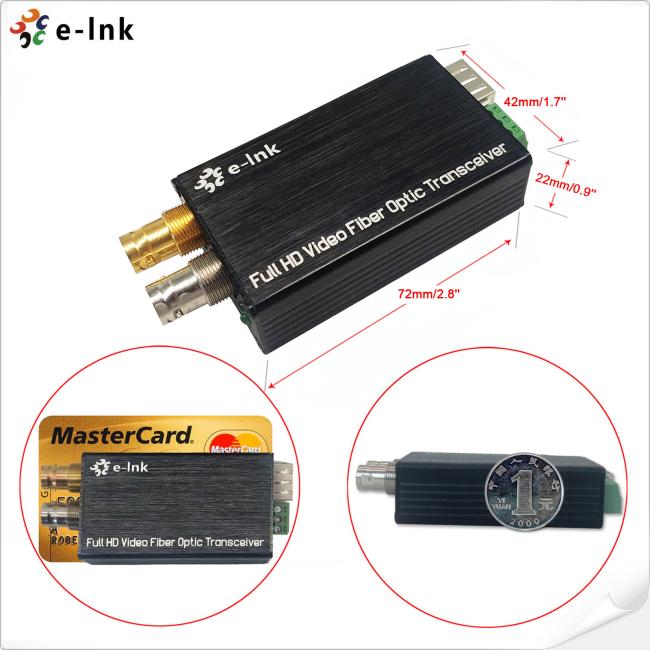

SDI Optical Fiber Transmitter and Receiver Overview
LNK-M3G-1V Series Mini-type 3G/HD-SDI Fiber Converter supports 1-channel 3G/HD-SDI Video & Tally signal transmitted via fiber optical cable, and monitor the signal locally over a 3G/HD-SDI loop output. E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal.
Micro 3G-SDI Fiber Transmitter Receiver Ordering Information
|
Model |
Description |
|
LNK-M3G-1V1T-40 |
Mini-type 3G-SDI to Fiber Converter with Tally and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs |
|
LNK-M3G-1V1D-40 |
Mini-type 3G-SDI to Fiber Converter with Reverse RS485 and loop out, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs |
