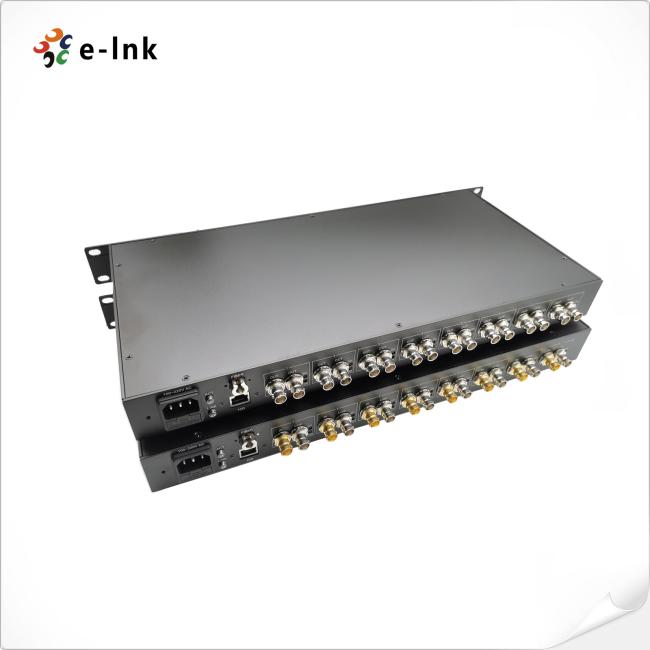

8 Channels 3G-SDI Fiber Converter With 10G Ethernet And Loop Out SMF 20KM
8 Channels 3G-SDI Fiber Extender With 10G Ethernet And Loop Out Single Mode Fiber 20KM
3G/6G/12G SDI Video Over Fiber Extender Advantages
► Supporting eight channels of 3G-SDI input and supporting embedded audio synchronous transmission
► Support one 10G Ethernet transmission
► The transmitter supports ring pass output, while the receiver supports dual output
► The dual color BNC design facilitates the identification of input and output signals (with gold as the input terminal)
► Support HDTV 1080P, 1080I, 720P. Maximum 1920* 1080@60Hz
► Strong compatibility, without selecting signal sources and devices
8Ch 3G-SDI Fiber Transmitter Receiver Technical Indexes
|
Fiber Optical interface |
|
|
Fiber interface |
Simplex LC |
|
Transmission distance |
20Km |
|
Wavelength |
1310nm/1550nm |
|
Video |
|
|
Video interface |
BNC |
|
Video input/output impedance |
75Ω |
|
Video input/output voltage |
Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
|
Video Bits Rate |
Max 3.2Gb/s |
|
Differential gain (10%～90% APL) |
<1% |
|
Video SDI standard |
270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
|
SMPTE425M3Gb/s Mapping(3G-SDI) |
|
|
SMPTE424M 3Gb/s serial interface(3G-SDI) |
|
|
Video Input |
8 Channel with Loop Out on TX |
|
Video Output |
8 Channel with Loop Out on RX |
|
Ethernet |
|
|
Standards |
IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3ae 10Gbps Ethernet IEEE 802.3x full-duplex flow control |
|
Interface |
1 x 10G/5G/2.5G/1G/100BASE-T RJ45 |
|
Working mode |
Auto-negotiation by default |
|
LED Indicator |
|
|
PWR |
Power Supply |
|
SDI 1~8 |
3G-SDI Signal |
|
ACT |
RJ45 Ethernet Signal |
|
LINK |
Link Status |
8 Channels 3G SDI Fiber Extender Over Ethernet Overview

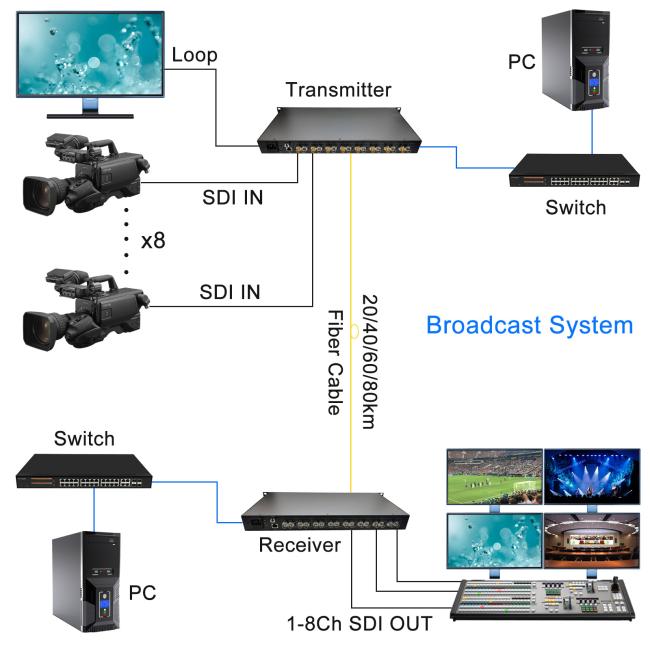

The 8-channel uncompressed 3G-SDI digital optical transceiver is composed of 8-channel 3G-SDI and 1-channel 10G network port, and transmits high-definition SDI signals through single core single-mode optical fibers. Optical transceiver transmission has the advantages of long transmission distance (1-80km), wide frequency band, strong anti-interference performance, high safety performance, small size, and light weight, making it suitable for long-distance and special environment transmission.
8-Channels 3G-SDI Fiber Converter With 10G Ethernet Ordering Information
|
Model |
Description |
|
LNK-3G8V10GE
|
8Ch 3G-SDI Fiber Converter with 10G Ethernet and loop out, SMF,
LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
|
