Outdoor Industrial PoE Media Converter 2 Port 10/100/1000T 802.3at 30w To 1 Port 100/1000x SFP
Industrial PoE Fiber Media Converter 2 Port 10/100/1000T 802.3at 30W To 1-Port 100/1000X SFP
2 port Gigabit Media Converter Advantages
► 2 port 10/100/1000BASE-T PoE
► 1 port 100/1000X SFP, 100Base-FX or 1000Base-X dual mode (automatic detection)
► Support IEEE802.3af/at PoE+ (30W)
► 12-48VDC 4-pin terminal block, redundant power supply
► Supports DIN rail and wall mounted installation
2 Port PoE Media Converter Technical Indexes
Standards: | IEEE802.3 10Base-T |
IEEE802.3u 100Base-TX/FX | |
IEEE802.3ab 1000Base-T | |
IEEE802.3z 1000Base-X | |
IEEE 802.3az Energy Efficient Ethernet (EEE) | |
IEEE802.3af Power over Ethernet | |
IEEE802.3at Power over Ethernet | |
Forward Filter Rate: | 14,880pps (10Mbps) |
148,800pps (100Mbps) | |
1,488,000pps (1000Mbps) | |

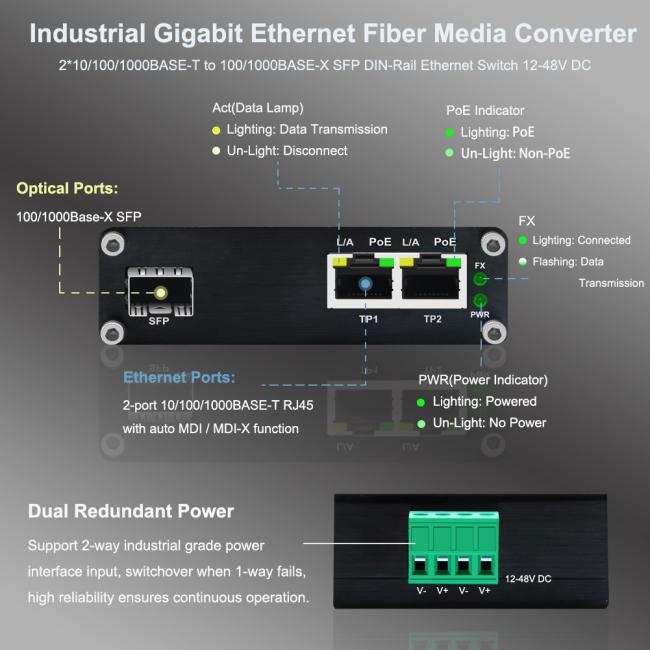

Connector: | 2 port RJ45 |
Optical Port: | 1 port SFP 1000Base-X or 100Base-FX (auto detection) |
Input Power: | 12~48VDC, 4-pin terminal block |
Output Power | 48VDC |
Power Consumption: | 65W Max. |
Dimensions (WxDxH): | 95 x 70 x 30 mm |
Weight: | 0.25Kg |
Mounting Options: | DIN-Rail / Wall-mount |

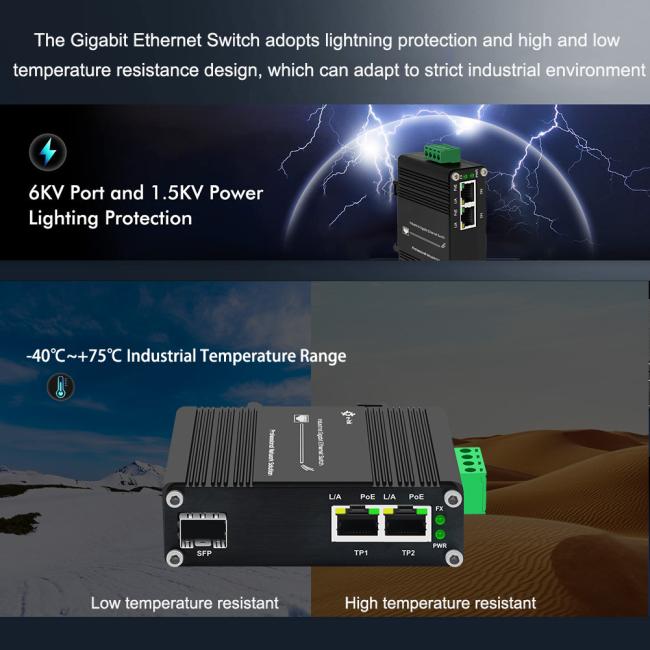

Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
Relative Humidity: | 5% to 95% non-condensing |
802.3at Ethernet Media Converter Overview
LNK-IMC1200GP-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC1200GP-SFP supports 10/100/1000Base-T with 30W PoE+ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
Fiber Ethernet Media Converter Ordering Information
Model | Description |
LNK-IMC1200GP-SFP | Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with PoE+ |
SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
► SFP module is to be purchased separately. | |
Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Power Options | ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
► Power Supply is to be purchased separately. |
