Industrial 240 Watt Managed PoE Switch 8 Port 10/100/1000T 802.3at To 4-Port 1000X Gigabit SFP
Managed Switch Product Description:
ETH-IMC408MP Series is a L2+ managed Ethernet switch with a variety of port combinations. It comes with 8 Gigabit Ethernet ports and 4 SFP fiber ports, making it ideal for a growing network. Equipped with 8 RJ45 10/100/1000Base-T ports, it supports Full/Half duplex mode and auto MDI/MDI-X connection. The switch additionaly includes 4 1000Base-X SFP ports that can handle single or multi-mode fibers of 1 or 2 cores.
This switch is designed to meet the needs of industrial environments and is ideal for applications requiring power and data over a long range. It is perfect for creating large networks consisting of various devices, such as IP cameras and wireless access points, that need to connect between separate and distant locales. It offers superior performance and maximum reliability, making this product an easychoice to make in any circumstances.
Managed PoE Switch Features:

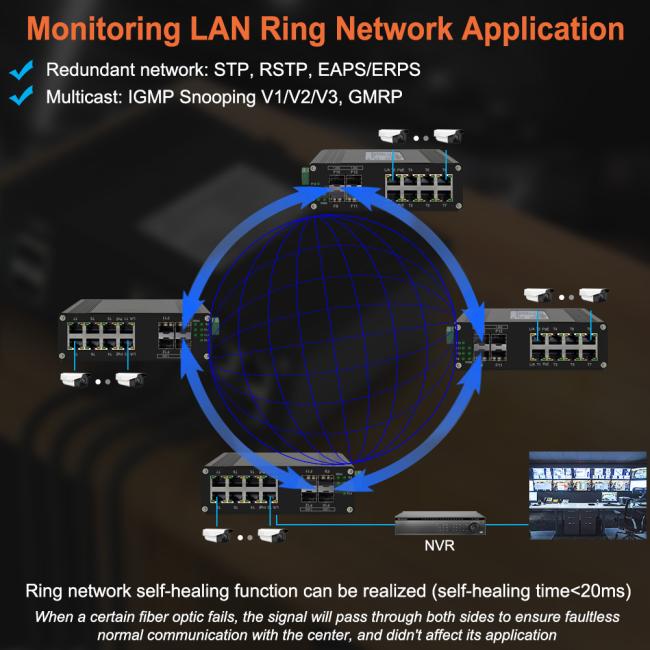

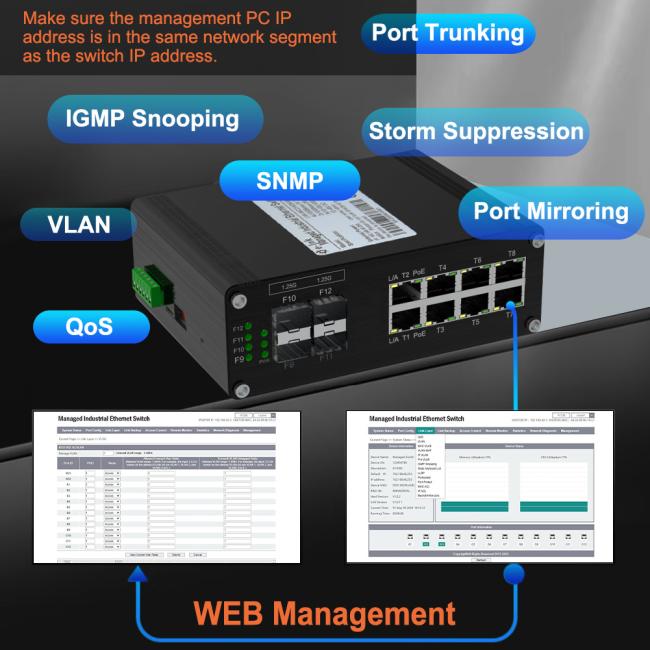

This device supports 8x10/100/1000Base-T and 4x1000Base-X ports, which all support full/half-duplex, auto-negotiation, Auto MDI/MDIX, and 9K Bytes Jumbo Frame.Furthermore,it is IEEE 802.3af/at compliant and has several features accessible through switches. These features include one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network.It also has a USB-C port for quick management, eliminating the need for RS232 serial port access.Finally, it is encased in a sturdy IP40 aluminum case and supports DIN-Rail installation.
Managed Gigabit Switch Technical Parameters:
| Standards: | IEEE802.3 10BASE-T | |||
| IEEE802.3u 100BASE-TX | ||||
| IEEE802.3ab 1000BASE-T | ||||
| IEEE802.3z 1000BASE-X | ||||
| IEEE802.3p QoS | ||||
| IEEE802.1d Spanning Tree | ||||
| Forward & Filtering Rate | 14,880pps (10Mbps) | |||
| 148,800pps (100Mbps) | ||||
| 1,488,000pps (1000Mbps) | ||||
| Processing Type | Store-and-Forward | |||
| Backplane bandwidth | 110Gbps | |||
| Max Packet Length | 9K Bytes Jumbo Frame | |||
| Address Table Size | 8K MAC Addresses | |||
| Connector: | 8 x RJ45 | |||
| RS485: | 1 x RS485 (Optional) | |||
| Optical Port: | 4 x 1000Base-X SFP | |||
| USB-C: | 1 x USB-C (for Management) | |||
| Physical interface | Industrial standard 3-pin screw terminal | |||
| Data type | 1Ch RS485 Bi-Direction | |||
| RS-485 signals | Data +, Data-, GND | |||
| Serial port line distance (copper) | 1000 meters | |||
| PoE Standard |
IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet |
|||
| Port | 8 x RJ45 | |||
| Power Pin Assignment | 4/5(+), 7/8(-) | |||
| PoE Budget: | Up to 240-watt PoE budget | |||
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) | |||
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) | |||
| Relative Humidity: | 5% to 95% non-condensing | |||
| MTBF | > 200,000 hrs | |||
| Input Power: | 48~57VDC, Redundant Power (6-pin Terminal Block) | |||
| Power Consumption: | 8W Max. (PoE in Use<240W) | |||
| DIP Switch | ||||
| 4-digit DIP switch function | DIP | Function | Settings | |
| SW 1 | VLAN | ON - Enabled | OFF - Disabled | |
| SW 2 | Ring Management | ON - Enabled | OFF - Disabled | |
| SW 3 (to be upgraded) | 250m PoE Network | ON - Enabled | OFF - Disabled | |
| SW 4 (to be upgraded) | PoE Reset | ON - Enabled | OFF - Disabled | |
| Dimensions (WxDxH): | 149 x 114 x 50 mm | |||
| Weight: | 0.55Kg | |||
| Casing: | Aluminum Case | |||
| Mounting Options: | DIN-Rail mount | |||

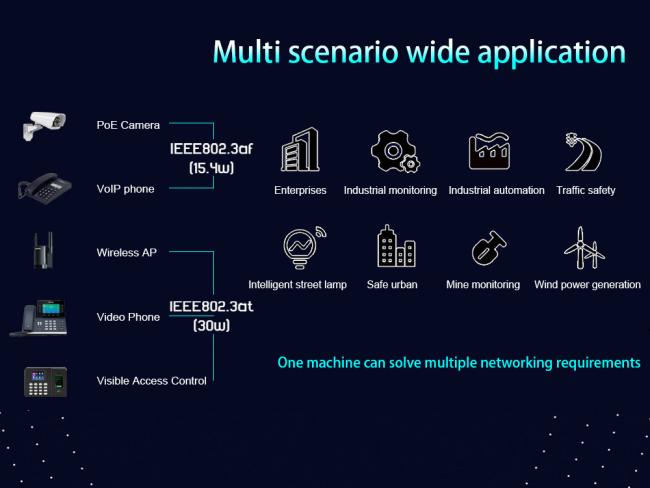

Managed Switch Applications:
Ethernet Switch Support and Services:
- 24/7Technical Support: Our team of certified technical support engineers is always standing by to provide technical support and advice.
- Warranty: We offer a comprehensive warranty on our Industrial Ethernet POE Switch products.
- Software Upgrades: Our team is consistently working to improve the functionality of our Industrial Ethernet POE Switch products.
- Onsite Maintenance: Our experienced technicians are available to provide onsite maintenance services.
- Remote Access: We offer remote access capabilities to assist with troubleshooting and monitoring.
- Training: We provide comprehensive training programs to ensure that our customers are able to use Industrial Ethernet POE Switch products safely and effectively.
Managed PoE Switch Packing and Shipping:
Packaging and Shipping of Industrial Ethernet POE Switch:
- The industrial Ethernet POE switch is packed in a high-strength, shockproof, waterproof corrugated box to ensure that the product is not damaged during long-distance transport.
- The product label is printed on the package, including the product name, model, main parameters, etc.
- The package is marked with a clear shipping mark.
- The package is sealed with tape to ensure that the product is not damaged during long-distance transport.
- We use reliable and safe transportation companies to transport the product, and track the product throughout the process.
Managed PoE Switch Ordering Information:
| Model | Description |
| ETH-IMC408MP | Industrial L2+ 8-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch |
| SFP Options | SFP option. Please select your SFP on our SFP Options Page. SFP module is to be purchased separately. |
| Mounting Options | Default DIN-Rail Bracket installed |
| Power Options |
DIN-Rail Power Supply. Open Wire for Terminal Block |
| Power Supply is to be purchased separately. |
