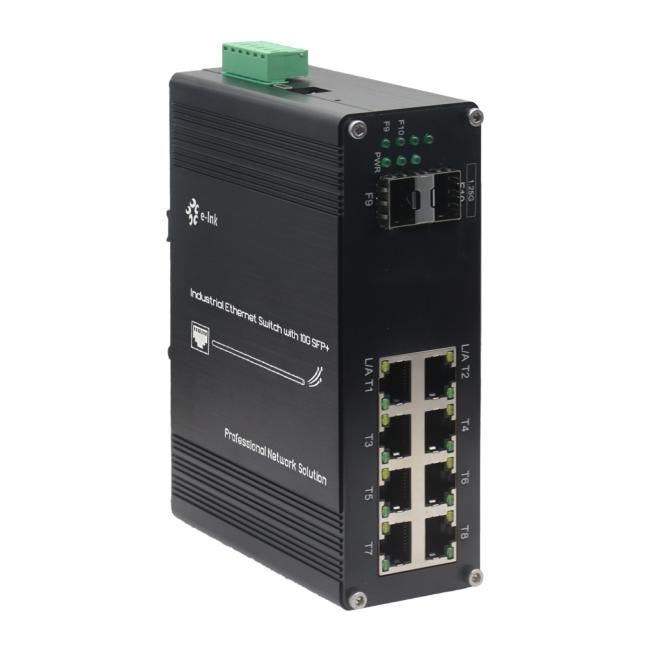

Industrial L2+ 8-Port 10 100 1000T + 2-Port 1000X SFP Managed Ethernet Switch
Industrial L2+ 8-Port 10/100/1000T + 2-Port 1000X SFP Managed Ethernet Switch
Industrial Ethernet Switch Advantages
► Support 8x10/100/1000Base-T + 2x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 9K Bytes Jumbo Frame
►IEEE 802.3az Energy Efficient Ethernet (EEE)
► IP40 Aluminum Case
► Supports DIN-Rail installation
Industrial Ethernet Switch Technical Indexes
| Packet Buffer Memory: | 12M bits | |||
| Processing Type: | Store-and-Forward | |||
| Backplane bandwidth | 110Gbps | |||
| Max Packet Length: | 9K Bytes Jumbo Frame | |||
| Address Table Size: | 8K MAC Addresses | |||
| Interface | ||||
| RS485: | 1 x RS485 (Optional) | |||
| USB-C: | 1 x USB-C (for Management) | |||
| RS485 Serial Interface (Optional) | ||||
| Physical interface | Industrial standard 3-pin screw terminal | |||
| Data type | 1Ch RS485 Bi-Direction | |||
| RS-485 signals | Data+, Data-, GND | |||
| Serial port line distance (copper) | 1000 meters | |||
| Baud rate | 0 ~ 800kbps | |||
| Environmental | ||||
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) | |||
| Relative Humidity: | 5% to 95% non-condensing | |||
| MTBF | > 200,000 hrs | |||
| Protection: | ||||
| Power Input Overload: | Automatic Resettable | |||
| Reverse Polarity: | Present | |||
| LED Indicators: | ||||
| PWR: | Power Status | |||
| Ethernet (Per Port): | Link/Activity | |||
| Fiber: | Gigabit SFP Port: F9~F10 | |||
Industrial Ethernet Media Converter Overview
The ETH-IMC208M series is a hardened Ethernet switch featuring 8 managed 10/100/1000Base-T ports at L2+ level, along with 2 additional 1000Base-X SFP ports.The Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. Due to its reliable design and user-friendliness, the product stands out as an excellent option for connecting networks comprising devices like IP cameras and wireless access points across remote sites.
Ordering Information
| Model | Description |
| ETH-IMC208M | Industrial L2+ 8-Port 10/100/1000T + 2-Port 1000X SFP Managed Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
