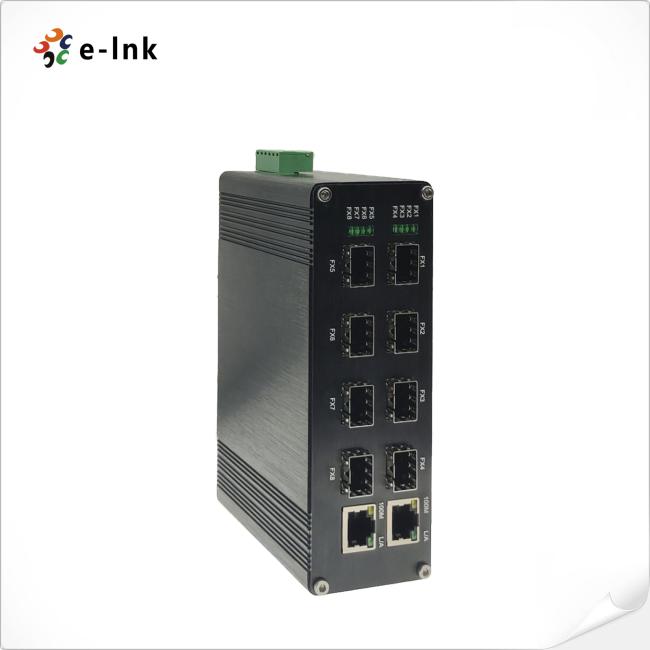

Industrial 2-port 10/100/1000Base-T + 8-port 1000BASE-X SFP Optical Switch
Industrial 2-port 10/100/1000Base-T + 8-port 1000BASE-X SFP Optical Switch
Industrial Ethernet Switch Advantages
► 2 10/100/1000Base-TX + 8 1000Base-X SFP
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
► Supports DIN-Rail and Wall-mount installation
Industrial Ethernet Switch Technical Indexes
| Packet Buffer Memory: | 2.75M bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 8K MAC Addresses |
| Environmental | |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| SPD | 100M |
| Ethernet(Per Port): | Link/Activity(1000M) |
| Fiber: | FX1~FX8 |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
Industrial Ethernet Switch Overview
LNK-IMC802G-SFP Series is a unmanaged 8 ports 1000Base-X SFP + 2 ports 10/100/1000Base-T Optical Ethernet Switch. The Switch provides SFP slot to support the use of SFP (Small Form-factor Pluggable) transceiver module. User can choose different types of SFPs (1.25g only). The Switch is compatible with 1 or 2 cores of either Single-mode or Multi-mode fiber. It operates within a temperature range of -40°C to 80°C and supports DIN-Rail installation.
Ordering Information
| Model | Description |
| LNK-IMC802G-SFP | Industrial Ethernet Switch: 2-Port 10/100/1000Base-TX + 8-port 1000Base-X SFP |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
