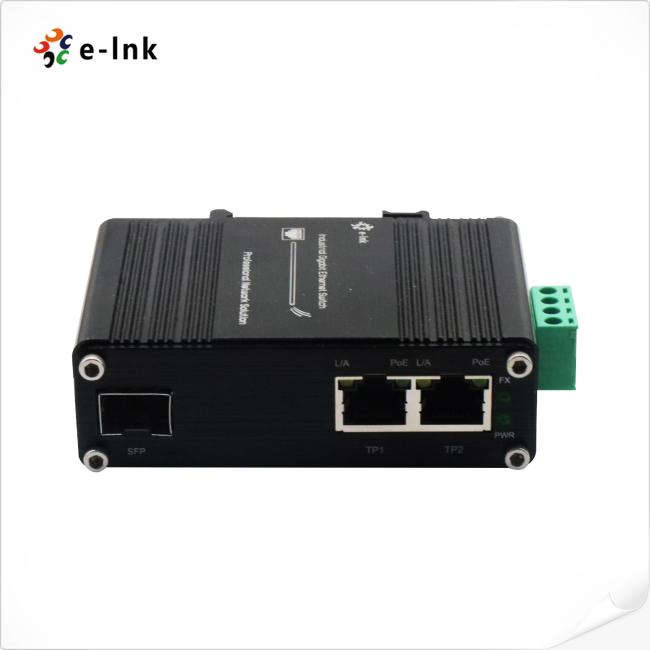

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 90W PoE++ Media Converter
Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 90W PoE++ Media Converter
Industrial Ethernet Switch Advantages
► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports DIN-Rail & Wall-mount installation
Industrial Ethernet Switch Technical Indexes
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1 Mbit |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2K MAC Addresses |
| Interface | |
| Connector: | 2 x RJ45 |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC, 4-pin terminal block |
| Power Consumption: | 185W Max. |
| LED Indicators: | |
| PWR: | Power Status |
| PoE: | PD Plug Status |
| RJ45: | LINK/Activity |
| SFP: | LINK |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
Industrial Ethernet Switch Overview
LNK-IMC1200GP90-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC1200GP90-SFP supports 10/100/1000Base-T with 90W PoE++ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
Ordering Information
| Model | Description |
| LNK-IMC1200GP90-SFP | Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with 90W PoE++ |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
