Industrial 4-Port UPoE (60W) + 2 SFP Gigabit Switch with Redundant Power
Industrial 4-Port UPoE (60W) + 2 SFP Gigabit Switch with Redundant Power
Overview
LNK-GYH204GP-SFP is an industrial-grade Ethernet switch featuring 4 UPoE ports (60W per port), 2
Gigabit SFP uplinks, and 1 RJ45 port. With a rugged design, redundant power input, and -40°C~80°C
wide operating temperature, it ensures reliable high-power PoE supply for IP cameras, wireless APs,
and IoT devices in demanding environments such as transportation, mining, and energy.
Features
High Power PoE++: 4 Gigabit UPoE ports, each delivering up to 60W, total 240W output
Flexible Uplinks: 2 Gigabit SFP slots + 1 RJ45 uplink for seamless network expansion
Industrial Durability: Wide temp range (-40°C to 80°C), fanless metal housing
Reliable Power: Redundant DC inputs ensure continuous operation
Easy Deployment: DIN-Rail or wall-mount installation for versatile use
Technical Indexes
| Product Name | 4-Port 10/100/1000T UPoE + 1-Port 10/100/1000T Console + 2-Port 1000X SFP Managed Switch (Port 1-4 support 60W PoE++) |
| Product Model | LNK-GYH204GP-SFP |
| Connector Type | 4x10/100/1000Base-T PoE ports + 2x Gigabit SFP slots + 1 x 10/100/1000Base-T port |
| Network Media |
10BASE-T: Cat3/ 4/ 5 UTP (≤100m) 100BASE-TX: Cat5 or more UTP (≤100m) 1000BASE-TX: Cat5 or more UTP (≤100m) |
| Bandwidth | 128Gbps (non-blocking) |
| Packet forwarding rate | 8.93Mbps@64byts |
| MAC Address Table | 8K |
| MTBF | 539608 hours |
| Forwarding Mode | Store-and-Forward |
| Buffer Memory | 4M |
| Network Protocol |
IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE802.3ab IEEE802.3z IEEE 802.3af /at |
| LED Display | Running Light: SYS, Interface Light: LINK, PoE, Fiber: L/A |
| PoE Ports | 4 ports support PoE (Port 1-4 support UPoE Power Output: 60W. Total power is 240W) |
| PoE Standard | Both IEEE 802.3af / IEEE 802.3at |
| Dimension | 165 x 148 x 54mm (WxDxH) |
| Transmission Distance | Depending on SFP |
| Working Environment |
Operating Temperature: -40°C ~ +85°C; Storage Temperature: -40°C ~ +85°C; Relative Humidity: 5 ~ 95%, non-condensing |
| Industrial Standard |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A; EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, Traffic Control: NEMA-TS2; Rail Traffic: EN 50121-4; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6 |
| Warranty | 5 years warranty |
Ordering Information
| Model | Description |
| LNK-GYH204GP-SFP | Unmanaged 4-Port 10/100/1000T UPoE + 1-Port 10/100/1000T + 2-Port 1000X SFP Switch, Port 1-4 support PoE Power Output: 60W |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ►240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |

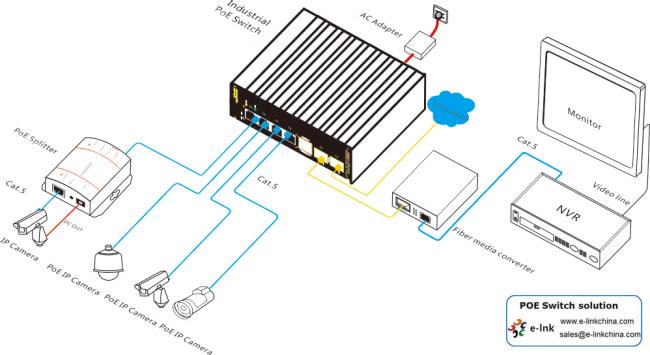

Applciation
