Industrial 4-port 10/100/1000BASE-T + 2-port 1000BASE-SFP 250m PoE Switch
dustrial 4-port 10/100/1000BASE-T + 2-port 1000BASE-SFP 250m PoE Switch
Industrial Ethernet Switch Advantages
► Transmission distance 250m, it can be flexible installation for wireless AP and surveillance project
► It will give the speed of 10Mbps at 250meter when connect IP cameras
► 4 10/100/1000Base-TX + 2 1000Base-FX
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Supports IEEE 802.3at PoE+ (30W per port)
► Supports 802.3x Flow control
► 9K Bytes Jumbo Frame
► Redundant Power Inputs
Industrial Ethernet Switch Technical Indexes
| Item | Description | ||||
| Ethernet | Ethernet Port |
1～4 ports: default mode: 10/100/1000BASE-TX; CCTV mode:10BASE-T; SFP:1000BASE-X |
|||
| Transmission Distance |
Downlink port: default mode: 0～100m; CCTV mode - Cat6: 220m, Cat7: 250m SFP: depends on SFP module performance |
||||
| Cable | Cat6/7 network cable | ||||
| PoE Protocol | IEEE802.3af/at protocol | ||||
| PoE Power Supply | End-span | ||||
|
Ethernet Exchange Specification |
Ethernet Standard |
IEEE802.3 10BASE-T; IEEE802.3u 100BASE-TX; IEEE802.3ab 1000BASE-TX; IEEE802.3z 1000-SX/LX; IEEE802.3 X |
|||
| Packet Buffer | 2.75M | ||||
| MAC Address | 4K | ||||
|
Status |
Power | Power1, Power2 | |||
| Optical Port | FX1, FX2 | ||||
| Ethernet Port | 1～4 ports : green light indicates network status, yellow light indicates PoE status | ||||
| Protection Level | Lighting Protection | 6KV , Per: IEC61000-4-5 | |||
| ESD | 6KV/ 8KV , Per: IEC61000-4-2 | ||||
| Mechanical | Out Shell | Aluminum | |||
| Color | Black | ||||
| Weight | 0.6kg | ||||
| Power/Distance 54V |
Distance | 100m | 150m | 200m | 250m |
| Power | 26W | 24W | 23W | 20W | |
Industrial Ethernet Switch Overview

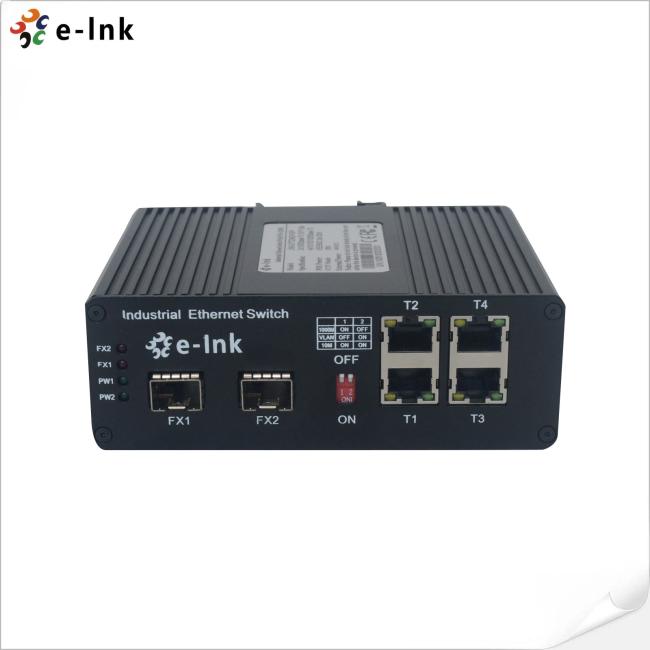

LNK-GYT204GP-SFP Series is 250m Industrial PoE Switch with 4 ports 10/100/1000Base-TX and 2 port 1000Base-SFP. The Switch provides 4 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 1000Base-SFP supports 1 or 2 core Single-mode or Multi-mode fiber. The product integrates fully the attributes of security surveillance, offering rapid packet forwarding capability and extensive backplane bandwidth, thereby guaranteeing clear image quality and seamless transmission. Inserted static, surge protection circuit can improve product stability. The product supports one key VLAN mode, can achieve VLAN, QoS priority after configuration, control the Net storm, protect the information security, prevent the viral transmission and Ethernet attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.
Ordering Information
| Model | Description |
| LNK-GYT204GP-SFP | 4-Port 10/100/1000Base-T PoE(up to 250m) + 2-Port 1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. | |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ►120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
