IP67 Waterproof 1-in 2-out 90W Industrial Gigabit PoE Extender
Price:
Negotiation
MOQ:
1 pcs
Delivery Time:
7 days
Brand:
E-link
Product Description
IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 2 x Output)
overview
The LNK-WP-IPE102 is a rugged, industrial-grade Gigabit PoE extender designed to deliver high-speed
1000Mbps Ethernet transmission over distances of up to 100 meters. Leveraging Power over Ethernet
(PoE) technology, it provides a stable 50-57V power supply to connected devices, eliminating the need
for additional power sources.
Built to withstand harsh environments, this extender features an IP67-rated waterproof housing and
industrial-grade terminals, ensuring reliable operation in extreme temperatures ranging from -40°C to
80°C. Its 1-in, 2-out port configuration allows flexible deployment while supporting high-power PoE
output (up to 90W), making it ideal for demanding applications such as:
- Security & surveillance systems
- Industrial network infrastructure
- Outdoor and harsh-environment deployments
With robust construction and extended transmission capabilities, the LNK-WP-IPE102 is an efficient solution for expanding network coverage in challenging conditions.
Technical Indexes
 Ethernet Port |
|
| PoE Input Port | 1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
| PoE Output Port | 2 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
| Cascade Connection | Support 3 grade |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af/at/bt |
| PoE Power Supply Type | Mid-span and End-span |
| PoE Pin Assignment | 1/2(+), 3/6(-), 4/5 (+), 7/8 (-) |
| Input Voltage | IEEE802.3 bt 90W |
| PoE Output Power | Maximum 65W |
| Single Port PoE Output | Maximum 60W |
| Switch Property | |
| Standards | IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet |
| Forwarding Modes | Store and Forward |
| Transmission Distance | Each extender extends by 100m, max 3 grade Cascade, total 400m. |
| MAC Table | 2K |
| Switching Capacity | 6Gbps |
| Packet Forwarding Rate | 4.46Mpps |
| Flow Control | IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
| Jumbo Frame | 10K bytes |
| Environment | |
| Surge Immunity | 6KV, Standard: IEC |
| ESD Protection | 6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2 |
| Protection Level | IP 67 |
| Explosion-Proof Rating | IK10 |
| Operating Temperature | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Humidity | 0~95% (non-condensing) |
| Physical Parameter | |
| Dimensions (WxDxH) | 195 x 75 x 46 mm |
| Weight | 0.6 kg |
| Casing | Aluminum Case |
| Mounting Options | Wall-mount |
| Certifications | |
| Certifications | CE, FCC, RoHS |
Application

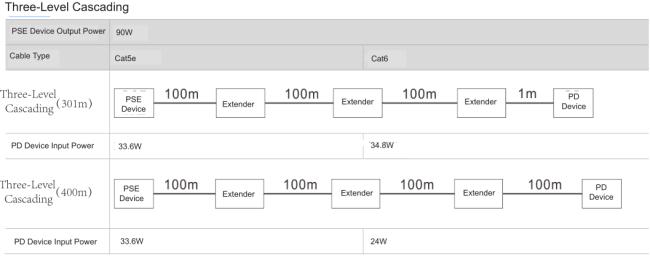

3-Grade Cascading Diagram
Ordering Information
| Model | Description |
| LNK-WP-IPE102 | IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 2 x Output |
| Mounting Options | Wall Mount Bracket is included. |
