Mini Industrial Fiber Ethernet Switch 4 Port 10/100/1000T To 1-Port SFP Uplink Gigabit PoE Voltage Booster
Price:
US$29.9/pc
MOQ:
1PCS
Delivery Time:
3~5 working days
Brand:
E-link
Product Description
Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster
Overview
LNK-IMC104GP-SFP Industrial PoE+ Switch compact 5-port industrial switch features
4×10/100/1000BASE-T PoE+ ports (802.3at, 30W/port) and 1×100/1000FX SFP slot. With 12-48V DC
wide input (voltage booster supported), -40~75°C operation, and rugged IP40 housing, it's ideal for
harsh environments like solar power systems and industrial networks. CE/FCC certified with 100%
burn-in tested reliability.
Key benefits:
✓ PoE+ power budget optimization
✓ Fiber uplink capability
✓ Industrial-grade durability
Features
100/1000BASE-X SFP slots for SFP type auto detection
12~48VDC wide range power input with power booster function
Supports DIN-Rail and Wall-mount installation
Industry standard design, dustproof and close design IP40, rugged high-strength metal case

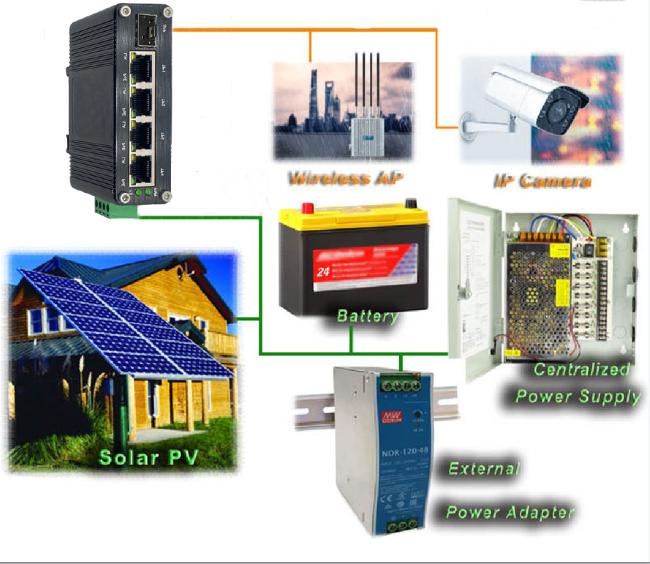

Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.3at Power over Ethernet Plus PSE | |
| IEEE 802.3af Power over Ethernet Plus | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property | Backplane bandwidth: 20Gbps; |
| Connector: | 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
| Interface | |
| Connector: | 4 x RJ45 |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | <125W (Non-PoE<6W) |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (WxDxH): | 95 x 70x 29mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR: | Power |
| L/A: | Link/Activity |
| PoE: | PoE Status |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55032:2017 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
Ordeing Information
| Model | Description |
| LNK-IMC104GP-SFP | Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster |
| SFP Options | SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| SFP module is to be purchased separately. | |
| Mounting Options | Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | Power Supply is to be purchased separately |
