Micro 4K 60Hz UHD HDMI USB over Fiber Optic Extender Multimode Fiber, LC, 300 meters

Price Negotiable

Price: To be negotiated

MOQ: 1 Pair

Delivery Time: 2-7working days

Brand: E-link

Product Description

Mini 4K/60Hz HDMI 2.0 KVM USB over Fiber Optic Extender

Overview

The LNK-109KVM Mini is a 4K/60Hz HDMI 2.0 & USB KVM extender that transmits high-quality video

and USB HID signals up to 300m (984 ft) over LC OM4 multimode fiber. Supporting 4K UHD @ 60Hz

with 4:4:4 chroma sampling, it ensures pristine, low-latency video for professional AV setups.

The Transmitter splits the HDMI input into dual outputs—one for local monitoring and another converted

via WDM (Wavelength-Division Multiplexing) into an optical signal. The Receiver seamlessly restores the

fiber input to HDMI and USB for remote displays.

Ideal for control rooms, digital signage, and high-performance KVM applications, this compact extender

delivers reliable, interference-free signal transmission.

Features

Transmits 4K HDMI2.0 video signals up to 300 meters over OM4 MMF

Transmitter support local loop output

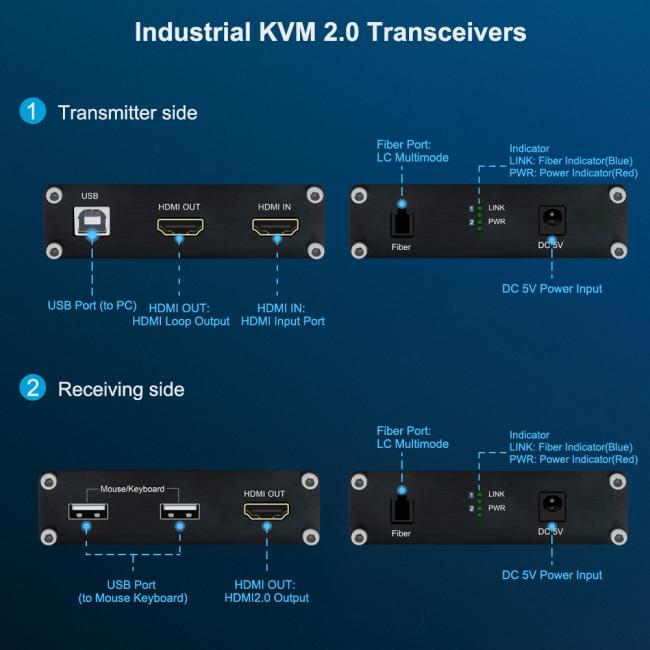

Remote module connectors: HDMI output for remote display, 2 USB outputs (keyboard / mouse), fiber

optic connector (LC-female), and 5 VDC power connector (DC-jack-female)

Support keyboard and mouse signal transmission

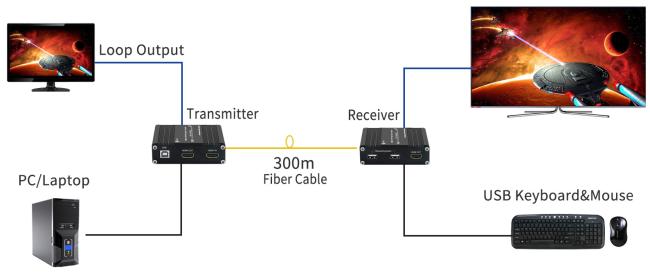

Application

Technical Indexes

Parameter		Description
Video	Standards	HDMI 2.0 and HDCP 2.2
	Maximum pixel clock	600MHz
	Data speed	18Gbps(6 Gbps/CH)
	Resolution range	4K@60Hz/4K@30Hz/1080p/720p
	Connector	Female HDMI type A
	Impedance	100Ω
K/M	Interface	PC: MINI-USB Keyboard And Mouse: USB-A
Optical fiber	Interface	LC connector
	Fiber type	OM4 Multimode
	Wavelength	850nm
	Interface bandwidth	18Gbps
	Transmission distance	OM4 Multimode fiber: 300M
Other	Power supply	The power adapter: DC 5V
	Power dissipation	TX:＜1.5W; RX:＜1W
	Temperature	Operating: 0℃ ~ +55℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	93 x 70 x 28(mm)
	Gross weight	0.25KG
	The warranty	1-year free warranty
