Mini Industrial PoE+ Media Converter between 10/100/1000BASE-T and 1000BASE-X Fiber
Mini Industrial 100/1000BASE-X to 10/100/1000BASE-T 30W PoE+ Media Converter
Overview
Key Features:
- Gigabit Conversion - Seamlessly bridges 10/100/1000BASE-T copper to 1000BASE-X fiber networks
- High-Power PoE+ - Delivers 30W power (IEEE 802.3at compliant) to connected devices
- Industrial Durability - Operates in extreme temperatures (-40°C to 75°C) with rugged aluminum housing
- Flexible Deployment - Supports DIN rail or distribution box mounting
- Reliable Performance - Auto-negotiating ports with half/full-duplex mode support
Ideal for:
✓ Industrial automation systems
✓ Outdoor surveillance networks
✓ Harsh environment applications
✓ Long-distance network extensions
Why Choose LNK-IMC3012P?
• Combines Gigabit speeds with PoE+ power delivery
• Eliminates separate power cabling requirements
• Provides electrical isolation via fiber optic connectivity
• Withstands demanding industrial conditions
Technical Specifications:
- Standards: IEEE 802.3at, IEEE 802.3ab, IEEE 802.3z
- Power Input: 48-56V DC
- Data Rate: 10/100/1000Mbps
- Fiber Interface: 1000BASE-X (SFP slot)
- PoE Output: 30W max
This industrial-grade media converter delivers reliable Gigabit connectivity with power-over-Ethernet
capability for your most demanding network deployments.
Features
12~48VDC Terminal Block Power Input
Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)
Supports Full/Half-duplex, Auto-negotiation
Environmentally hardened -40°C to 75°C(-40°F to 167°F) operating temperature
1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
1 SC Port, 100Base-FX or 1000Base-X dual mode (auto detection)

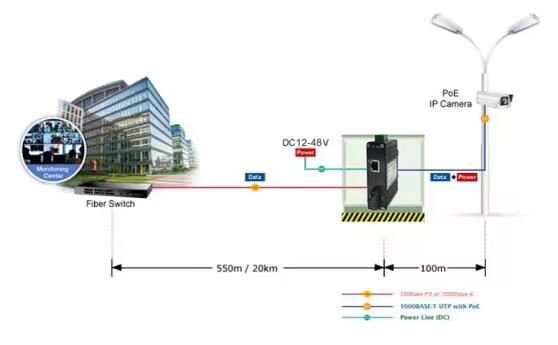

Application
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1 Mbit |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2048K MAC Addresses |
| Interface | |
| Connector: | 1x RJ45 |
| Optical Port: | 1 x 1000Base-X SC |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, 2-pin terminal block |
| Output Power | 48VDC |
| Power Consumption: | 36W Max. |
| LED Indicators: | |
| PWR: | Power Status |
| L/A: | Data LINK Status |
| POE: | PoE Status |
| 100M/1000M: | Fiber LINK Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals | |
| ISO9001, CE, FCC, RoHS | |
EMI: | |
EMS: | |
Ordering Information
| Model | Description |
| LNK-IMC3012P | Mini Industrial 30W PoE Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m |
| LNK-IMC3012P-2 | Mini Industrial 30W PoE Media Converter, 1-port 1000BASE SC+ 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km |
| LNK-IMC3012P-20 | Mini Industrial 30W PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
| LNK-IMC3012PS-20 | Mini Industrial PoE Media Converter, 1-port 1000BASE SC + 1-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
