Mini 4K HDMI Fiber Optic Transceiver Supports HDMI 1.4a up to 300m Distance
Mini 4K HDMI Optical Transceiver
Overview
The 4K HDMI Optical Transceiver is designed for uncompressed, lossless HDMI 1.4a signal transmission over multimode optical fiber at 850nm, supporting up to 300m distance with 4Kx2K resolution. The transmitter converts HDMI signals into a 10Gbps serial data stream for dual-fiber transmission, while the receiver restores it to HDMI. RoHS-compliant and lead-free, this device ensures high stability and anti-interference performance. Perfect for large-screen displays, conference systems, and home entertainment setups.
Features
- HDMI 1.4a and HCCP1.2 Support
- Uncompressed transmission,No delay,No losses
- DDC CEC HPD Signal Support
- Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3 Multimode Fiber (850nm)
- Supports All Modes up to 4K*2K@30Hz Resolution
- Standard HDMI Connector
- Integrated USB Connector for Power
- Hot-Pluggable, EMI/RFI Resistant
- Miniature form factor for ease of use and installation
- 850nm VCSEL and PIN Photodetector
- Video over (2) multimode fibers
- Typical Power Dissipation 1420 mW (Source), 1220 mW (Sink)
- Operating Case Temperature: 0~70°C
Dimension & Size
Technical Indexes
| Type of Extender | Fiber Transmitter for HDMI signal over Optical Fiber Cable |
| Input Signals | HDMI |
| Signal Support | HDMI 1.4a HDMI format standard and HDCP compliant |
| Video Support | 1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Website Specifications | Color space 444, 420, 400 |
| Dynamic EDID | Plug & Play, no need to learn |
| Fiber Connector | Double LC Receptacle |
| Transmission Distance | Multi Mode, up to 984ft (300M) |
| Operating Temperature | 0°C to + 50°C |
| Storage Temperature | -20°C to + 85°C |
| Humidity | to 90% RH (non-condensing) |
| Safety Approvals | CE, RoHS, FCC |
| Dimension (WxDxH) | 3.15 x 0.79 x 0.35 in (80x20x9mm) |
| Weight | 0.1 kg / 0.22 lb |
| Operation Voltage | 5VDC |
| Power Supply | Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC) |
Ordering Information
| Item | Description |
| LNK-106M | Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input |

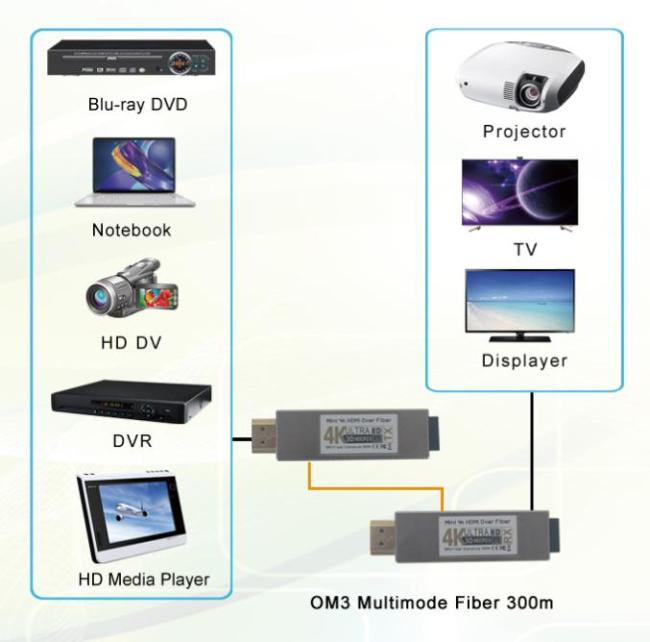

Application
