Industrial Gigabit 95W PoE Injector IEEE 802.3bt LTPoE++ with 12-48V DC Input
Industrial Gigabit 95W 802.3bt PoE++ Injector (12~48VDC)
Overview
The LNK-INJ-48-95W is an industrial-grade, hardened Gigabit single-port PoE injector
designed for demanding environments. Supporting IEEE 802.3bt and LTPoE++ standards,

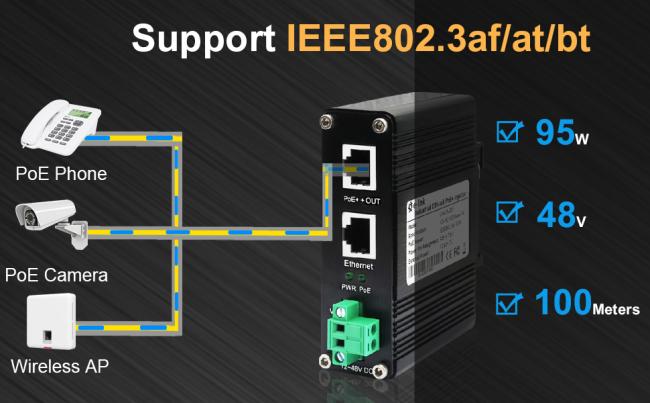

it delivers up to 95W high-power PoE output over a single Ethernet cable. With a 12~48V DC
wide-range input and built-in voltage booster, it enables seamless power delivery to PoE devices
such as PTZ cameras, wireless access points, and other high-power equipment up to 100 meters away.
Both data ports support 10/100/1000Base-T and comply with IEEE 802.3ab, ensuring
reliable Gigabit connectivity and stable performance in harsh industrial conditions.
Features
► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)
► Support 95W LTPoE++ Power Sourcing Equipment
► Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
► Support 10/100/1000Base-TX
► Extensive LED indicators for PoE diagnostics
► 12~48V DC wide range power input with power booster function
► Up to 95-watt PoE budget (48VDC), 95-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
► Supports DIN-Rail and Wall-mount installation
► Environmentally Hardened -40°C to 80°C
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3 10 BASE-T Ethernet |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 1,488,000pps (1000Mbps) |
| Cabling: | Twisted-pair cable up to 100 meters (328ft) |
| Maximum Distance: | Cat5 UTP up to 100m |
| Connector: | 2x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 100W Max. |
| Power over Ethernet: | |
| Standard: | IEEE 802.3bt 4-pair Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus | |
| IEEE 802.3af Power over Ethernet | |
| Port: | RJ45 |
| Power Pin Assignment | Data provide over pairs 1,2TX and 3,6RX |
| PoE Budget: | Up to 95-watt PoE budget (48VDC) |
| LED Indicators: | |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | IP40 Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Standard Accessories | |
| Package Contents | LNK-INJ-48-95W |
| User's manual | |
| Wall-mount kit | |
| DIN-mount kit | |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A | |
| EN55022:2006+A1: 2007 Class A | |
| Surge Protection: | |
| RJ45: 1KV | |
| Power: 500V | |
| ESD: 4KV/8KV | |
| Model | Description |
| LNK-INJ-48-95W | Hardened Gigabit 1-port Ethernet Input + 1-port 95W PoE++ Output Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block |
| ► Power Supply is to be purchased separately. |
