E-Link EN50155 Compliant M12 PoE Injector for Industrial & Vehicle Applications
E-Link EN50155 Compliant M12 PoE Injector
Overview
The E-Link EN50155 compliant PoE Injector is engineered for demanding industrial
applications, including rolling stock, vehicles, and railway systems. This advanced
IEEE802.3at PoE device features Intelligent Detection, offering a single 10/100/1000
Base-T(X) PoE output port that meets EN50155 standards. Designed to withstand harsh
environments, the PoE injector utilizes M12 connectors for secure, durable connections,
ensuring reliable operation even in conditions with vibration and shock. It only powers on
when a valid PoE signature is detected from downstream devices, protecting non-PoE
devices from potential damage. The LNK-INJ301-M12 provides an integrated power solution
with a wide voltage input range of 12-48VDC, ideal for high-availability applications.
Features
12~48VDC power supply input
Fully compliant with IEEE802.3af/at standards
Supports 10/100/1000Base-TX for both data and power transmission
Compatible with DIN rail and wall-mount installation options
M12 connectors ensure secure and durable connections
Comprehensive LED indicators for PoE status monitoring
Designed for extreme conditions with an operating temperature range of -40°C to 80°C
(-40°F to 176°F)
Technical Indexes
|
Standards: |
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T |
|
Connector: |
2x M12 connector (8-pin female M12 A-coding) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC on 5-pin female M12 A-Coding |
|
Power Consumption: |
36W Max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at |
|
Port: |
M12 connector (8-pin female M12 A-coding) |
|
Max. Power per Port: |
30W Max |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A, EN50155 |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500V |
|
|
ESD: 4KV/8KV |
|
Ordering Information
|
Model |
Description |
|
LNK-INJ301-M12 |
EN50155 Industrial 1-port 10/100/1000M M12 PoE Injector 12~48VDC Power Input |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |

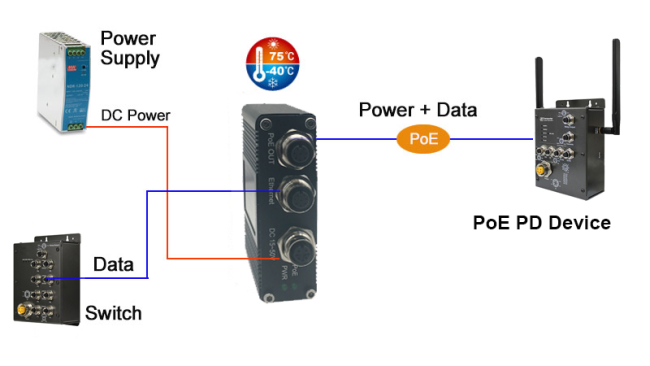

Application
M12 Pin Assignments:
|
Pin |
Assignment |
||
|
RJ45 |
M12 |
PoE |
Ethernet |
|
1 |
6 |
TP0+ |
TP0+ |
|
2 |
4 |
TP0- |
TP0- |
|
3 |
5 |
TP1+ |
TP1+ |
|
4 |
7 |
TP2+(VCC+) |
TP2+ |
|
5 |
1 |
TP2-(VCC+) |
TP2- |
|
6 |
8 |
TP1- |
TP1- |
|
7 |
2 |
TP3+(VCC-) |
TP3+ |
|
8 |
3 |
TP3-(VCC-) |
TP3- |
