DVI Bidirectional Audio RS232 Fiber Extender Up to 80km Transmission
DVI Bidirectional Audio RS232 Fiber Extender Up to 80km Transmission
Overview
This fiber optic extender transmits DVI video, bidirectional stereo audio, and RS232 signals
over a single fiber cable up to 80km. It supports resolutions up to 1920×1200@60Hz and
ensures high-quality, stable transmission with auto-adjustment and ESD protection. Ideal
for industrial control, multimedia systems, and long-distance AV integration.
Features
Transmits DVI video, bidirectional stereo audio, and RS232 over one fiber cable
Supports high resolutions up to 1920×1200@60Hz, compatible with 1080P Full HD
Long-distance transmission up to 80km via single-mode fiber
Compliant with DVI 1.0 and HDCP 1.2 standards
Auto-adjustment for clear, smooth, and stable image quality
Built-in ESD protection for enhanced system reliability
Plug and play, no software installation required
Technical Indexes
|
Parameter |
Description |
|
|
Video
|
Standards |
DVI 1.0 and HDCP 1.2 |
|
Maximum pixel clock |
165MHz |
|
|
Maximum data rate |
2.97Gbps |
|
|
Compliant |
1080P@50/59.95/60Hz( Max 1920*1200@60Hz) 1080P@23.98/24/29.97/30Hz, Special support 1600*1200 @60HZ |
|
|
Connector |
Female DVI-D |
|
|
Impedance |
100Ω |
|
|
DVI Cable Range |
||
|
Audio |
Interface |
3.5MM external stereo audio |
|
Transmitter |
1Ch Input + 1Ch Output |
|
|
Receiver |
1Ch Input + 1Ch Output |
|
|
RS232 |
Interface |
3-Pin Terminal Block |
|
Baud Rate |
≤115200 |
|
|
Data Bits |
8 bits |
|
|
Optical fiber |
Interface |
SFP model – LC connector |
|
Fiber type |
Single-mode |
|
|
Wavelength |
850nm/1310nm/1550nm |
|
|
Interface bandwidth |
3Gbps |
|
|
Transmission distance |
Multi-mode fiber: <500M Single-mode fiber: 0~80km |
|
|
Other |
Power supply |
The power adapter: DC 5V |
|
Power dissipation |
MAX 4W |
|
|
Temperature |
Operating: -20℃ ~ +70℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension (LxWxH) |
120 x 83 x 28 (mm) |
|

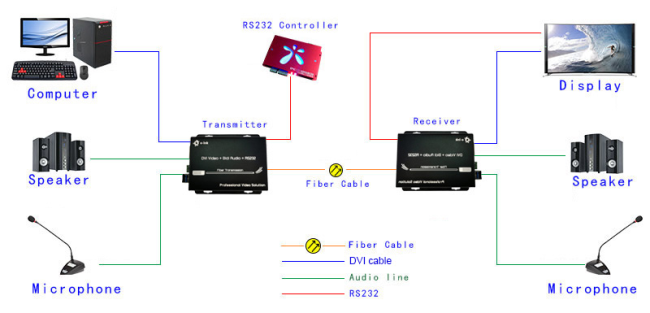

Application
