Industrial 8-Port 10/100/1000T + 4-Port 1000X SFP Ethernet Switch

LNK-IMC408G Industrial 8-Port Ethernet Switch Overview

The LNK-IMC408G Series is an industrial-grade managed Ethernet switch with 8- 10/100/1000Base-T RJ45 ports

and 4- 1000Base-X SFP slots, designed for harsh environments.

With 8x 10/100/1000Base-T RJ45 ports featuring auto-negotiation and 4x 1000Base-X SFP slots

supporting single/multi-mode fibre, it provides a reliable, high-speed network connection for industrial applications.

Its key features include a wide operating temperature range of -40°C to 75°C, DIN-rail mounting,

dual DC power inputs of 12–48 V, and an IP40-rated rugged metal housing, making it ideal for factory automation,

IP surveillance, and outdoor deployments. With advanced QoS, VLAN and network management capabilities,

this switch ensures stable data transmission in mission-critical environments.

LNK-IMC408G Industrial 8-Port Ethernet Switch Features

• Versatile, High-Density Connectivity: Integrates 8x 10/100/1000Base-T RJ45 ports with 4x 1000Base-X SFP fiber slots, providing flexible connectivity for both copper and fiber optic networks in a single, compact device.
• Simplified Copper Network Deployment: The RJ45 ports feature auto-negotiation, Auto MDI/MDIX, and full/half-duplex support, enabling true plug-and-play installation without the need for crossover cables or manual configuration.
• Industrial-Grade Robustness: Housed in a rugged IP40-rated aluminum case and capable of operating reliably in extreme temperatures from -40°C to +80°C, ensuring durability in demanding environmental conditions.
• Optimized for Industrial Integration: Designed with a wide 12-48V DC power input range and DIN-rail mounting support for easy and stable deployment into industrial control panels and cabinets.
• High Energy Efficiency: Compliant with IEEE 802.3az EEE standards and consuming a maximum of only 8W, this switch delivers significant power savings without compromising performance.
• Compact and Space-Saving Design: With compact dimensions of 149 x 114 x 50 mm and a lightweight build of 0.55 kg, it is ideal for applications where space is at a premium.

LNK-IMC408G Industrial 8-Port Ethernet Switch Technical Indexes

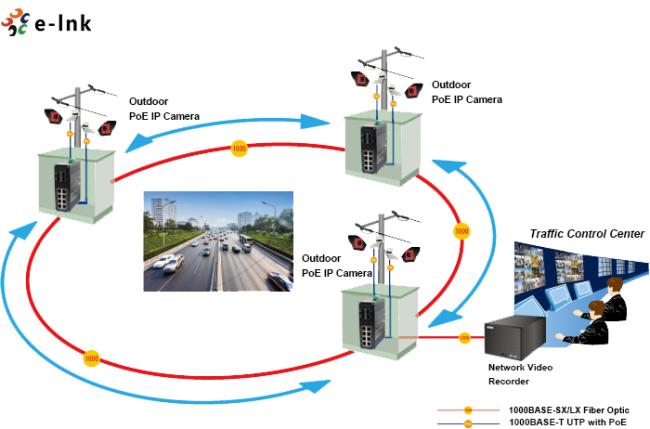

LNK-IMC408G Industrial 8-Port Ethernet Switch Application

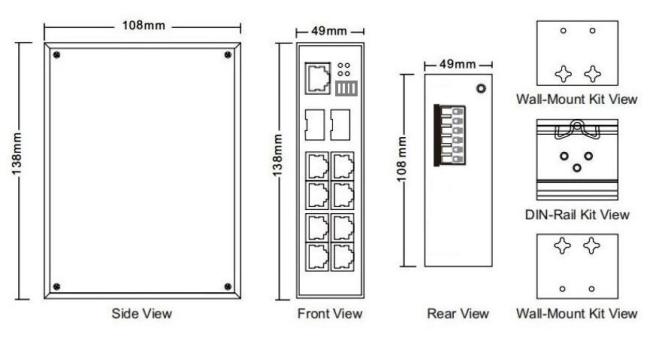

LNK-IMC408G Industrial 8-Port Ethernet Switch Dimension

After-Sales and Warranty Policy

It is composed of online customer service and telephone customer service, providing product consultation,

remote technical support, maintenance and acceptance services.

Service Policy: Three-month replacement and three-year warranty.

Replacement: Within three months of purchasing a series of products, after testing the product failure by technicians and man-made damage

caused by non-natural disasters, the purchaser can directly go to the purchasing point to replace the same type of products.

Or a product of comparable performance. If there is no trouble in product testing, the original sample will be returned.

Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.

[The following circumstances do not fall within the scope of replacement and free maintenance]

1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
