Mini 4K HDMI 2.0 KVM USB Fiber Extender 300m OM4 LC Uncompressed 60Hz

Price Negotiable

Price: $355-$405

MOQ: 1 Pair

Delivery Time: 2-7working days

Brand: E-link

Product Description

Mini 4K HDMI 2.0 KVM USB Fiber Extender 300m OM4 LC Uncompressed 60Hz

Overview

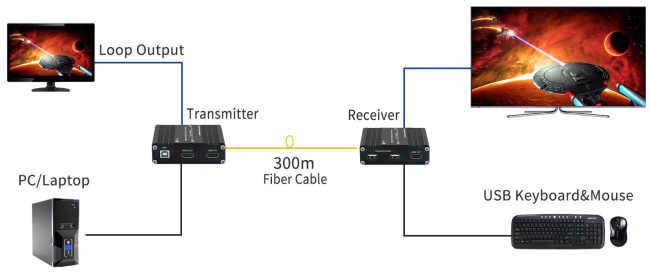

This Mini 4K HDMI 2.0 KVM USB Fiber Extender transmits uncompressed UHD video and

USB keyboard/mouse signals up to 300 meters over OM4 multimode fiber. Supporting

resolutions up to 4K@60Hz 4:4:4, it ensures lossless image quality and stable performance.

Featuring LC connectors, plug-and-play installation, and local HDMI loop output, it is ideal

for control rooms, conference systems, and long-distance display setups.

Features

Supports uncompressed HDMI 2.0 video up to 4K@60Hz 4:4:4

Extends HDMI and USB keyboard/mouse signals up to 300m over OM4 fiber

LC multimode fiber interface with 18Gbps bandwidth

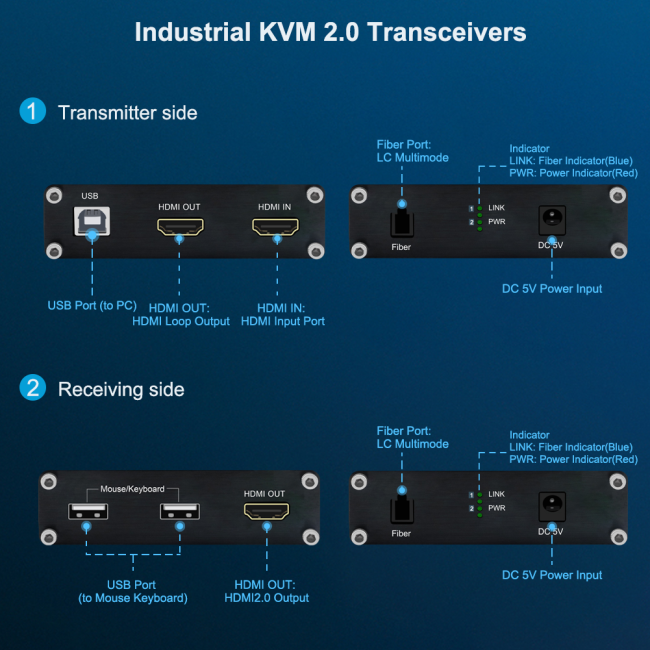

Local HDMI loop output for simultaneous monitoring

Plug-and-play design for quick, easy installation

Technical Indexes

Parameter		Description
Video	Standards	HDMI 2.0 and HDCP 2.2
	Maximum pixel clock	600MHz
	Data speed	18Gbps(6 Gbps/CH)
	Resolution range	4K@60Hz/4K@30Hz/1080p/720p
	Connector	Female HDMI type A
	Impedance	100Ω
K/M	Interface	PC: MINI-USB Keyboard And Mouse: USB-A
Optical fiber	Interface	LC connector
	Fiber type	OM4 Multimode
	Wavelength	850nm
	Interface bandwidth	18Gbps
	Transmission distance	OM4 Multimode fiber: 300M
Other	Power supply	The power adapter: DC 5V
	Power dissipation	TX:＜1.5W; RX:＜1W
	Temperature	Operating: 0℃ ~ +55℃
	Humidity	Operating: 5% ~ 90%
	Dimension (LxWxH)	93 x 70 x 28(mm)
	Gross weight	0.25KG
	The warranty	1-year free warranty
