Mini Industrial 100FX to 2x10/100 PoE++ Media Converter 90W -40~75°C
Mini Industrial 100FX to 2x10/100 PoE++ Media Converter 90W -40~75°C
Overview
The LNK-IMC1200P90 Series is a rugged industrial media converter that bridges 1-Port
100Base-FX fiber with 2-Port 10/100Base-T Ethernet, delivering up to 90W PoE++ per port
in compliance with IEEE802.3bt. Housed in a durable aluminum casing and designed for
-40°C to 75°C operation, it ensures reliable performance in demanding environments. Ideal
for powering high-power devices such as PTZ cameras, wireless APs, and industrial
terminals.
Features
1-Port 100Base-FX SC to 2-Port 10/100BASE-T media conversion
IEEE802.3bt PoE++ up to 90W per port, backward compatible with PoE/PoE+
Hardened aluminum case, DIN-Rail or wall-mount installation
Wide operating temperature range: -40°C to 75°C
Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
Store-and-forward switching with 128K buffer and 1K MAC table
Supports full/half-duplex and auto MDI/MDI-X
Technical Indexes
|
Standards: |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3x Full duplex and flow control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
IEEE802.3bt Power over Ethernet |
|
|
Processing Type: |
Store-and-Forward |
|
Forward Filter Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
Packet Buffer Memory: |
128K bits |
|
Max Packet Length: |
1522 Bytes |
|
Address Table Size |
1K MAC Addresses |
|
Interface |
|
|
Connector: |
2 x RJ45 |
|
Optical Port: |
1 x SC 100Base-FX |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC, 2-pin terminal block |
|
Output Power |
48VDC |
|
Power Consumption: |
185W Max. |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
L/A: |
Data LINK Status |
|
POE: |
PoE Status |
|
100M/1000M: |
Fiber LINK Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
|
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
|
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
|
Model |
Description |
|
LNK-IMC1200P90 |
Mini Industrial 90W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 1310nm, 2km |
|
LNK-IMC1200P90-20 |
Mini Industrial 90W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km |
|
LNK-IMC1200P90S-20 |
Mini Industrial 90W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |

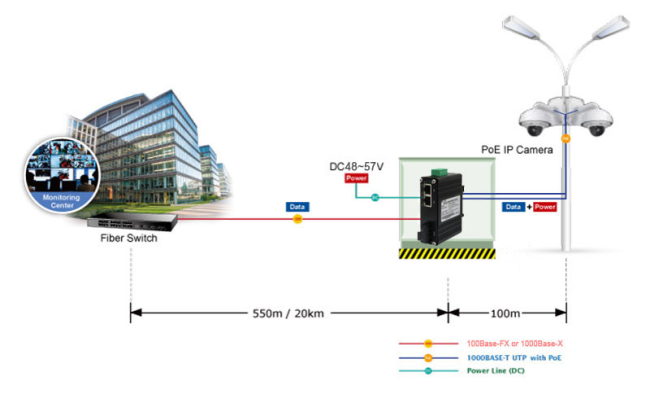

Application
