Mini Industrial SFP to 2xGigabit Ethernet Media Converter -40~75°C
Mini Industrial SFP to 2xGigabit Ethernet Media Converter -40~75°C
Overview
The LNK-IMC1200G-SFP Series is a rugged industrial media converter featuring 1 SFP
port (100/1000Base-X auto-detection) and 2 x 10/100/1000Base-T Ethernet ports. Designed
for harsh industrial environments, it supports full/half-duplex, store-and-forward switching,
jumbo frames up to 9K bytes, and Energy Efficient Ethernet (IEEE 802.3az). Its durable
aluminum housing allows DIN-rail or wall-mount installation and reliable operation from
-40°C to 75°C. Flexible deployment is possible with single-mode or multi-mode fiber SFP
modules.
Features
1 x SFP port (100/1000Base-X, auto-detection) to 2 x 10/100/1000BASE-T
Full/half-duplex with auto-negotiation and auto MDI/MDI-X
Jumbo frame support up to 9K bytes
Energy Efficient Ethernet (IEEE 802.3az)
Hardened aluminum housing for industrial-grade durability
Wide operating temperature: -40°C to 75°C
DIN-rail or wall-mount installation
Technical Indexes
|
Standards: |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE802.3z 1000Base-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Processing Type: |
Store-and-Forward |
|
Forward Filter Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
1 Mbit |
|
Max Packet Length: |
9K Bytes |
|
Address Table Size |
2K MAC Addresses |
|
Interface |
|
|
Connector: |
2 x RJ45 |
|
Optical Port: |
1 x SFP 1000Base-X or 100Base-FX (auto detection) |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, 4-pin terminal block |
|
Power Consumption: |
5W Max. |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
L/A: |
Data LINK Status |
|
SPD: |
Ethernet Status |
|
100M/1000M: |
Fiber LINK Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
|
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
|
|
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
|
Model |
Description |
|
LNK-IMC1200G-SFP |
Hardened 2-Port 10/1001000BASE-TX to 100/1000BASE-X SFP Media Converter |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |

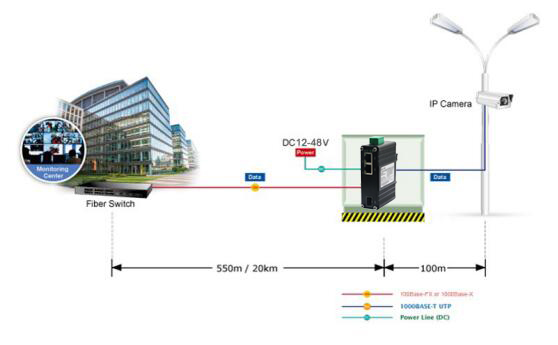

Application
