The ETH-IMC2402-OEO is an industrial-grade 1G/10G OEO converter with 3R repeater
and Ethernet media converter functions. Designed for harsh environments (-40°C to 80°C),
it supports fiber-to-fiber and fiber-to-copper conversion, long-distance transmission up to
120km, and wavelength conversion for DWDM/CWDM applications. Ideal for backbone
networks, data centers, and telecom environments.
Features
3R function: Regeneration, Reshaping, Re-timing
Supports 1.25G/10G data rate switching via DIP switch
Fiber-to-fiber 10G OEO repeater & wavelength conversion
Works as 1G Ethernet fiber-to-copper media converter
Hot-swappable SFP+ ports with full LED status display
Rugged IP40 aluminum case with DIN-Rail/Wall-mount
Wide operating temperature: -40°C to 80°C
Redundant 12~48VDC power input with protection
Technical Indexes
|
Technical Indexes |
||||
|
Equipment function |
3R Repeater |
|||
|
Transmission Speed |
10G: 8.5Gb/s-11.7Gb/s |
|||
|
Protocols |
8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS |
|||
|
Interface Type |
SFP+ to SFP+ |
|||
|
Transmission Distance |
SFP+ module: up to 80km |
|||
|
Maximum Packet Forwarding Rate |
14,880,950/S |
|||
|
Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
|||
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|||
|
Relative Humidity |
5% to 95% non-condensing |
|||
|
MTBF |
> 200,000 hrs |
|||
|
Ethernet Media Converter Specifications |
||||
|
Standards |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z, 1000BASE-SX/LX IEEE 802.3x Full-duplex flow control |
|||
|
Work Mode |
10/100/1000BASE-T to 1000BASE-SX/LX |
|||
|
Port Type |
SFP to RJ45 |
|||
|
Network Cables |
Twisted-pair Fiber-optic Cable |
|||
|
Electrical and Mechanical |
||||
|
Input Power |
12~48VDC, Redundant Power (6-pin Terminal Block) |
|||
|
Power Consumption |
8W Max |
|||
|
Protection |
||||
|
Power Input Overload |
Automatic Resettable |
|||
|
Reverse Polarity |
Present |
|||
|
DIP Switch |
||||
|
4-digit DIP switch function |
DIP |
Function |
Settings |
|
|
SW 1 |
1.25G/10G |
ON - 1.25~8.5G |
OFF - 10.3G or 14.025G |
|
|
SW 2 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 3 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
SW 4 |
Reserved |
ON - Reserved |
OFF - Reserved |
|
|
LED Indicators: |
||||
|
PWR |
Power Status |
|||
|
FX1 |
SFP Port-1 |
|||
|
FX2 |
SFP Port-2 |
|||
|
L/A |
TP LINK/ACT |
|||
|
Dimensions (WxDxH) |
95 x 70 x 30 mm |
|||
|
Weight |
0.25Kg |
|||
|
Casing |
Aluminum Case |
|||
|
Mounting Options: |
DIN-Rail mount |
|||
|
Regulatory Approvals |
||||
|
ISO9001, CE, RoHS, FCC |
||||
|
EN55022:2010+AC: 2011, Class A |
||||
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
||||
|
EN 61000-3-3: 2013 |
||||
|
EN55024:2010 |
||||
|
IEC 61000-4-2: 2008 (ESD) |
||||
|
IEC 61000-4-3: 2010 (RS) |
||||
|
IEC 61000-4-4: 2012 (EFT) |
||||
|
IEC 61000-4-5: 2014 (Surge) |
||||
|
IEC 61000-4-6: 2013 (CS) |
||||
|
IEC 61000-4-8: 2009 (PFMF) |
||||
Ordering Information
|
Model |
Description |
|
ETH-IMC2402-OEO |
Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
|
|
► Power Supply is to be purchased separately. |
Application

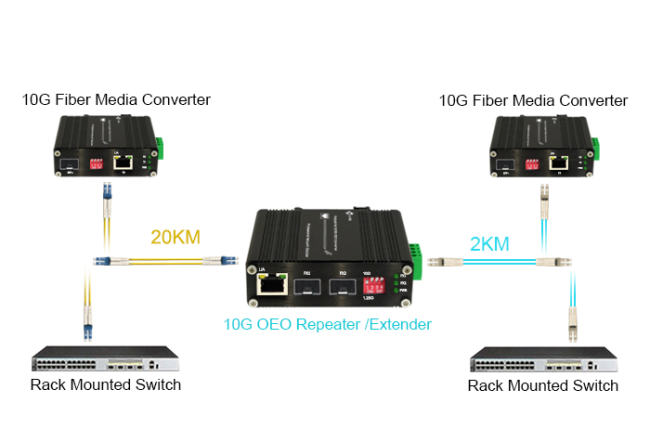

Application I: 1G/10G OEO Converter (3R Repeater)

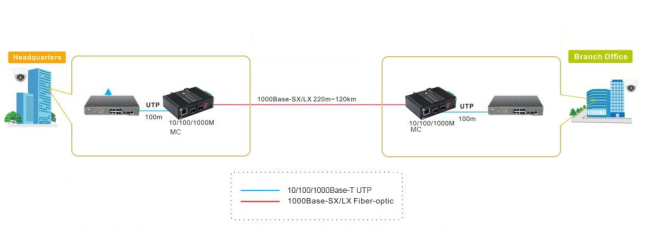

Application II: fiber to copper 1Gbps Ethernet equipment function as fiber-to-copper media converter
