Overview
The LNK-IMC103G Series is a compact, rugged industrial Gigabit Ethernet switch featuring
three 10/100/1000BASE-T RJ45 ports and one 1000BASE-X SC fiber port. Built with an
IP40 aluminum case and wide operating temperature range (-40°C to 75°C), it ensures
reliable performance in harsh environments. Ideal for connecting IP cameras, wireless
access points, and remote network devices, it provides high-speed, energy-efficient, and
stable networking for industrial applications.
Features
3 x 10/100/1000BASE-T RJ45 ports with auto MDI/MDI-X
1 x 1000Base-X SC fiber port for long-distance transmission
Store-and-forward switching with 12Gbps switch fabric
IEEE 802.3az Energy Efficient Ethernet (EEE) support
Rugged IP40 aluminum case with DIN-Rail & wall-mount options
Wide operating temperature range: -40°C to 75°C
Compact, lightweight design (95 × 70 × 30 mm, 0.25kg)
MTBF > 200,000 hrs, ensuring long-term reliability
Technical Indexes
|
Standards: |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE802.3z 1000Base-X |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Processing Type: |
Store-and-Forward |
|
Forward Filter Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
4 Mbit |
|
Switch Fabric: |
12Gbps |
|
Max Packet Length: |
9K Bytes |
|
Address Table Size |
2K MAC Addresses |
|
Interface |
|
|
Connector: |
3 x RJ45 |
|
Optical Port: |
1 x SC 1000Base-X |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, 2-pin terminal block |
|
Power Consumption: |
5W Max. |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
L/A: |
Ethernet LINK Status |
|
FX: |
Fiber LINK Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
|
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
|
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
|
Model |
Description |
|
LNK-IMC103G |
Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m |
|
LNK-IMC103G-20 |
Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km |
|
LNK-IMC103GS-20A |
Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km |
|
LNK-IMC103GS-20B |
Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |

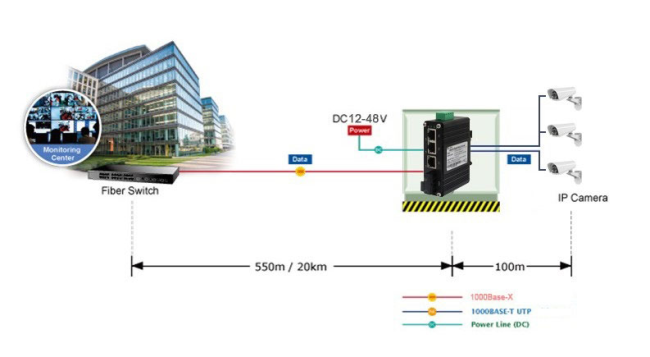

Application
