Mini Industrial 4-Port PoE+ Gigabit + 1 SFP Ethernet Switch -40~80°C
Mini Industrial 4-Port PoE+ Gigabit + 1 SFP Ethernet Switch -40~80°C
Overview
The LNK-IMC104GP-SFP Series is a compact industrial Gigabit Ethernet switch featuring
four 10/100/1000BASE-T PoE+ ports and one dual-speed 100/1000BASE-X SFP slot.
With wide-range 12~48VDC input and built-in voltage booster, it delivers up to 120W PoE
budget to power IP cameras, wireless APs, and other devices. Designed with an IP40
rugged aluminum case, DIN-Rail/wall-mount flexibility, and an extended -40°C to 80°C
operating range, this switch ensures reliable connectivity in demanding industrial
environments such as solar power, transportation, and surveillance networks.
Features
4 × 10/100/1000BASE-T RJ45 ports with IEEE 802.3at PoE+
1 × 100/1000BASE-X SFP slot with auto detection
Wide 12~48VDC input with built-in power booster
Up to 120W PoE budget (48VDC), 90W (24VDC), 60W (12VDC)
Store-and-forward switching with 20Gbps backplane bandwidth
Rugged IP40 aluminum housing, dustproof and durable
DIN-Rail and wall-mount installation options
Extended operating temperature: -40°C to 80°C
MTBF > 200,000 hrs for long-term reliability
Technical Indexes
|
Standards: |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE 802.3at Power over Ethernet Plus PSE |
|
|
IEEE 802.3af Power over Ethernet Plus |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer: |
1Mbits |
|
Packet Length: |
10Kbytes |
|
MAC Address Table: |
8K |
|
Switch Fabric: |
10Gbps/non-blocking |
|
Exchange Property |
Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps |
|
Connector: |
4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
|
Interface |
|
|
Connector: |
4 x RJ45 |
|
Optical Port: |
1 x SFP 1000Base-X or 100Base-FX (auto detection) |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at |
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
PoE Budget: |
Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Terminal Block) |
|
Power Consumption: |
<125W (Non-PoE<6W) |
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
Dimensions (WxDxH): |
95 x 70x 29mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
LED Indicators: |
|
|
PWR: |
Power |
|
L/A: |
Link/Activity |
|
PoE: |
PoE Status |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55032:2017 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
|
Model |
Description |
|
LNK-IMC104GP-SFP |
Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |

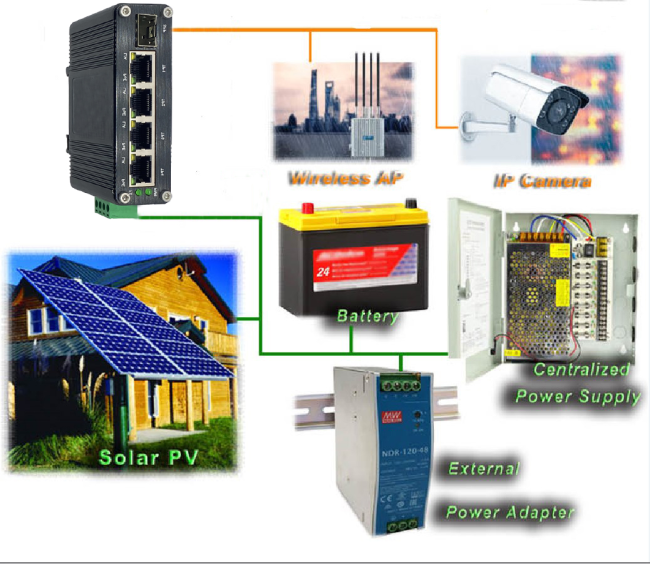

Application
