Mini Industrial 2-Port Gigabit Copper + 2-Port Fiber Ethernet Switch -40~75°C
Mini Industrial 2-Port Gigabit Copper + 2-Port Fiber Ethernet Switch -40~75°C
Overview
The LNK-IMC202G Series is a compact and rugged industrial Ethernet switch featuring two
10/100/1000BASE-T RJ45 ports and two 1000Base-X fiber ports supporting SFP/SC/ST/FC
modules. Designed for harsh environments, it supports link fault pass-through, full/half-duplex
auto-negotiation, 9K jumbo frames, and redundant 12~48VDC power input. With DIN-Rail or
wall-mount installation, IP40 aluminum housing, and an extended -40°C to +75°C operating
temperature, it provides reliable high-speed networking for industrial automation, surveillance,
and remote communication applications.
Features
2 × 10/100/1000BASE-T RJ45 ports with auto MDI/MDI-X
2 × 1000Base-X fiber ports, compatible with SFP/SC/ST/FC modules
Link Fault Pass Through (LFP) support
Full/Half-duplex auto-negotiation
9K Bytes Jumbo Frame support
Redundant 12~48VDC power input
Rugged IP40 aluminum housing
DIN-Rail and wall-mount installation
Operating temperature: -40°C to +75°C
Compact design: 95 × 70 × 30 mm; Weight: 0.25kg
MTBF > 200,000 hrs for long-term reliability
Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE802.3z 1000Base-X |
|
|
Processing Type: |
Store-and-Forward |
|
Forward Filter Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
1 Mbit |
|
Max Packet Length: |
9K Bytes |
|
Address Table Size |
2K MAC Addresses |
|
Interface |
|
|
Connector: |
2 x RJ45 |
|
Optical Port: |
2 x SFP/SC/ST/FC 1000Base-X |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, 4-pin terminal block |
|
Power Consumption: |
5W Max. |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
RJ45: |
LINK/Activity |
|
SFP: |
LINK |
|
General |
|
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
|
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
|
Model |
Description |
|
LNK-IMC202G Series |
Industrial 2-Port 10/1001000BASE-TX to 2x1000BASE-X SFP/SC/ST/FC Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
|
Power Options |
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
|
► Power Supply is to be purchased separately. |

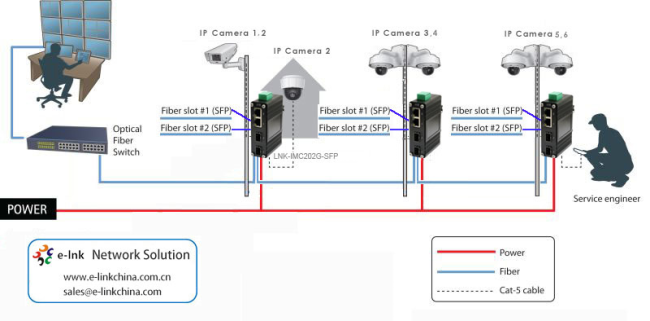

Application
