Overview
The LNK-IMC005G Series is a compact unmanaged industrial 5-port Gigabit switch with
wide 12~48VDC input and optional PoE support. Designed with rugged IP40 casing and
operating in extreme temperatures from -40°C to 80°C, it ensures reliable Ethernet
connectivity in harsh industrial environments. Certified with CE and FCC standards, it is
an economical and durable solution for surveillance, automation, and industrial networking
applications.
Features
5 × Gigabit RJ45 ports with auto-MDI/MDI-X
Optional PoE support (IEEE 802.3af/at)
Wide 12~48VDC power input with overload protection
Rugged IP40 aluminum casing, vibration & shock resistant
DIN-Rail & Wall-mount flexible installation
Energy Efficient Ethernet (EEE), MTBF >200,000 hrs
Operating temperature: -40°C ~ 80°C
Technical Indexes
|
Standards: |
IEEE 802.3 Ethernet |
|
IEEE 802.3u Fast Ethernet |
|
|
IEEE 802.3ab Gigabit Ethernet |
|
|
IEEE 802.3x Full-Duplex Flow Control |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE 802.3af/at Optional |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer: |
1Mbits |
|
Packet Length: |
10Kbytes |
|
MAC Address Table: |
8K |
|
Switch Fabric: |
10Gbps/non-blocking |
|
Exchange Property |
Backplane bandwidth: 10Gbps; Packet forwarding rate: 14.88Mpps |
|
Connector: |
5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Terminal Block) |
|
Power Consumption: |
<6W (PoE In Use: <125W) |
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
Dimensions (WxDxH): |
95 x 70x 29m |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
LED Indicators: |
|
|
PWR |
Power |
|
L/A |
Link/Activity |
|
SPD |
Data Rate |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55032:2017 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
|
Model |
Description |
|
LNK-IMC005G |
Mini Industrial 5-Port 10/100/1000T Gigabit Ethernet Switch |
|
LNK-IMC005GP |
Mini Industrial 4-Port 10/100/1000T PoE + 1- Uplink Port Ethernet Switch |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |

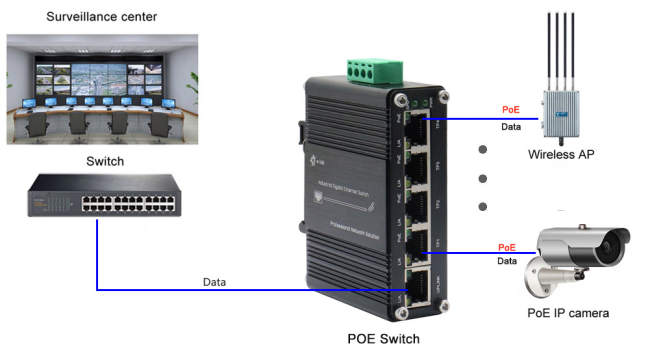

Application
