Hardened 4-Port Gigabit 802.3bt PoE++ + 2-Port Fiber Industrial Switch
Hardened 4-Port Gigabit 802.3bt PoE++ + 2-Port Fiber Industrial Switch
Overview
The LNK-IMC204GP60 Series is a rugged industrial PoE++ switch designed for harsh
environments. Featuring 4 Gigabit RJ45 ports with up to 60W PoE per port and 2 dual-speed
fiber uplinks, it delivers both power and high-speed data to IP cameras, wireless APs, and
other demanding devices. With wide temperature tolerance, redundant power inputs, and
flexible mounting, it ensures reliable and efficient networking for industrial and remote
deployments.
Features
High Power PoE++ – Up to 60W per port, ideal for PTZ cameras & APs
Dual Fiber Uplinks – 100/1000Base-X with SFP/SC/FC/ST options
Rugged Design – Operates from -40°C to 80°C in harsh conditions
Redundant Power – 48~57VDC inputs with overload & polarity protection
Energy Efficient – IEEE 802.3az support for optimized power usage
Flexible Mounting – Compact aluminum case for DIN-Rail or wall installation
Technical Indexes
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
IEEE802.3af Power over Ethernet |
|
|
IEEE802.3at Power over Ethernet |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
1M bits |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes |
|
Address Table Size: |
2048 MAC Addresses |
|
Interface |
|
|
Connector: |
4 x RJ45 |
|
Optical Port: |
2 x 100/1000Base-FX (SFP, SC, FC, ST Optional) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
240W Max. (PoE in use) |
|
5W Max. (PoE not in use) |
|
|
Standard: |
IEEE802.3af/at/bt |
|
PoE: |
|
|
Port: |
RJ45 Port 1 ~ Port 4 |
|
Max. Power per Port: |
60W Max per port |
|
Power Pin Assignment |
1/2(+), 3/6(-) or 4/5(+), 7/8(-) |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power1, Power2 Status |
|
PoE: |
Per Port Status |
|
Ethernet (Per Port): |
Link/Activity |
|
SFP: |
FX1, FX2 |
|
Dimensions (WxDxH): |
150 x 115 x 30 mm |
|
Weight: |
0.5Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information

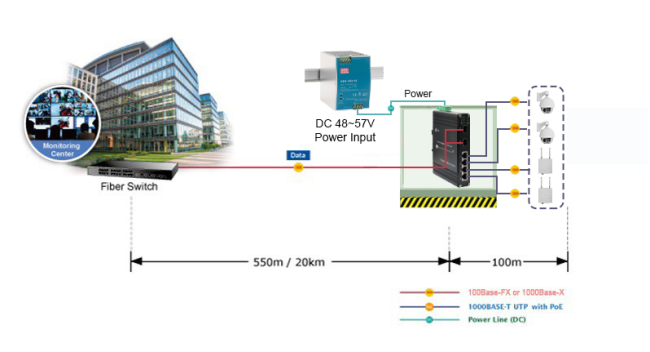

Application
