Industrial 8-Port PoE Gigabit + 4 SFP + 2x10G SFP+ Hardened Switch
Industrial 8-Port PoE Gigabit + 4 SFP + 2x10G SFP+ Hardened Switch
Overview
The LNK-IMC2X4S8GP Series is an industrial-grade Ethernet switch featuring 8
PoE-enabled Gigabit ports, 4 Gigabit SFP uplinks, and 2 high-speed 10G SFP+ slots.
Designed with a rugged aluminum case, wide -40°C to 80°C operating range, and
redundant power inputs, it ensures reliable connectivity for mission-critical networks such
as IP surveillance, wireless backhaul, and industrial automation.
Features
High-density ports: 8x Gigabit PoE, 4x Gigabit SFP, 2x 10G SFP+ uplinks
240W PoE budget to power IP cameras, APs, or VoIP phones
Rugged design with IP40 aluminum housing & wide temp tolerance (-40°C~80°C)
Advanced performance: Jumbo frames up to 9K, 8K MAC address table, 2.75M buffer
Reliable power: Dual redundant 48~57VDC inputs with overload & reverse polarity
protection
Industrial compliance: Meets EN/IEC standards for ESD, surge, and vibration immunity
Technical Indexes
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE802.3ae 10GBase-R |
|
|
IEEE802.3p QoS |
|
|
IEEE802.1d Spanning Tree |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
1,488,000,000pps (10000Mbps) |
|
|
Packet Buffer Memory: |
2.75M bits |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
8K MAC Addresses |
|
Interface |
|
|
Connector: |
8 x RJ45 |
|
Optical Port: |
4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+ |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3at Power over Ethernet Plus |
|
IEEE 802.3af Power over Ethernet |
|
|
ort: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
PoE Budget: |
Up to 240-watt PoE budget |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
8W Max.(PoE in Use<240W) |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
Ethernet(Per Port): |
Link/Activity |
|
PoE (Optional) |
PoE Status |
|
Fiber: |
Gigabit SFP Port: F1~F4 |
|
10G SFP+ Port: G1, G2 |
|
|
Dimensions (WxDxH): |
149 x 114 x 50 mm |
|
Weight: |
0.55Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
|
Model |
Description |
|
LNK-IMC2X4S8GP |
Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
|
|
► Power Supply is to be purchased separately. |

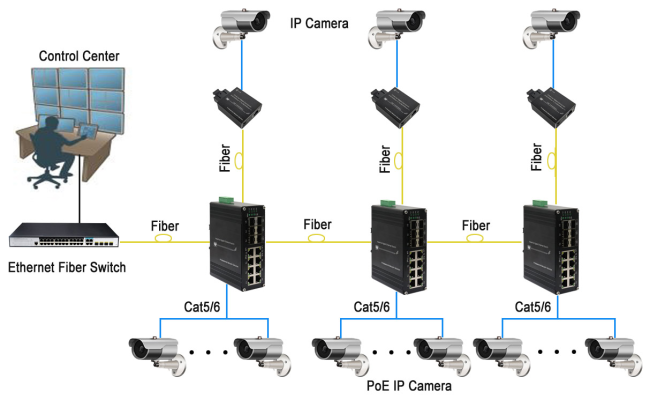

Application
