Industrial 8G + 4G SFP + 2x10G SFP+ Hardened Ethernet Switch DIN-Rail
Industrial 8G + 4G SFP + 2x10G SFP+ Hardened Ethernet Switch DIN-Rail
Overview
The LNK-IMC2X4S8G Series is a rugged industrial Ethernet switch with 8 Gigabit RJ45
ports, 4 Gigabit SFP slots, and 2 high-speed 10G SFP+ uplinks. Designed with a fanless
aluminum housing, wide -40°C to 80°C operating temperature, and redundant power inputs,
it delivers reliable, high-bandwidth connectivity for mission-critical industrial networks
such as surveillance, transportation, and wireless backhaul.
Features
High Port Density: 8 × Gigabit RJ45 + 4 × 1G SFP + 2 × 10G SFP+ uplinks
10G Capability: Future-proof bandwidth for high-speed backbone connections
Industrial Hardened: -40°C to 80°C operation, IP40 aluminum housing
Resilient Power: Dual 12~48VDC redundant inputs with overload protection
Efficient Networking: Jumbo frames up to 9K bytes, IEEE 802.3az Energy Efficient Ethernet
Easy Deployment: Compact 149 × 114 × 50 mm, DIN-Rail mount ready
Technical Indexes
|
Standards: |
IEEE802.3 10BASE-T |
|
IEEE802.3u 100BASE-TX/FX |
|
|
IEEE802.3ab 1000BASE-T |
|
|
IEEE802.3z 1000BASE-X |
|
|
IEEE802.3ae 10GBase-R |
|
|
IEEE802.3p QoS |
|
|
IEEE802.1d Spanning Tree |
|
|
Forward & Filtering Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
1,488,000,000pps (10000Mbps) |
|
|
Packet Buffer Memory: |
2.75M bits |
|
Processing Type: |
Store-and-Forward |
|
Max Packet Length: |
9K Bytes Jumbo Frame |
|
Address Table Size: |
8K MAC Addresses |
|
Interface |
|
|
Connector: |
8 x RJ45 |
|
Optical Port: |
4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+ |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC, Redundant Power (6-pin Terminal Block) |
|
Power Consumption: |
8W Max. |
|
Protection: |
|
|
Power Input Overload: |
Automatic Resettable |
|
Reverse Polarity: |
Present |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
Ethernet (Per Port): |
Link/Activity |
|
Fiber: |
Gigabit SFP Port: F1~F4 |
|
10G SFP+ Port: G1, G2 |
|
|
Dimensions (WxDxH): |
149 x 114 x 50 mm |
|
Weight: |
0.55Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
EN55022:2010+AC: 2011, Class A |
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
|
|
EN 61000-3-3: 2013 |
|
|
EN55024:2010 |
|
|
IEC 61000-4-2: 2008 (ESD) |
|
|
IEC 61000-4-3: 2010 (RS) |
|
|
IEC 61000-4-4: 2012 (EFT) |
|
|
IEC 61000-4-5: 2014 (Surge) |
|
|
IEC 61000-4-6: 2013 (CS) |
|
|
IEC 61000-4-8: 2009 (PFMF) |
|
Ordering Information
|
Model |
Description |
|
LNK-IMC2X4S8G |
Industrial 8-Port 10/100/1000T + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch |
|
SFP Options |
► SFP option. Please select your SFP on our SFP Options Page |
|
► SFP module is to be purchased separately. |
|
|
Mounting Options |
► Default DIN-Rail Bracket installed |
|
Power Options |
|
|
► Power Supply is to be purchased separately. |

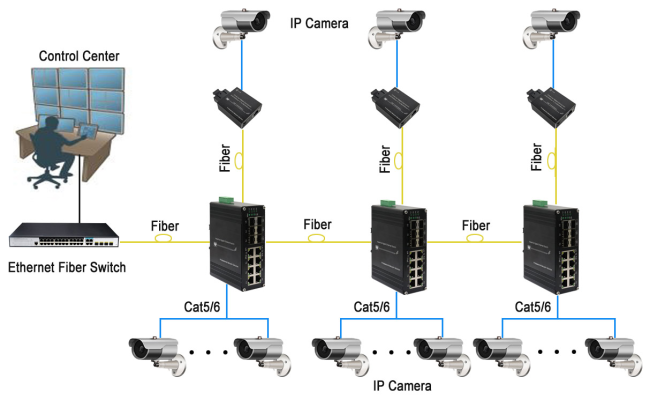

Application
