Industrial Gigabit PoE+ Injector 12~48VDC 30W per Port DIN-Rail Mount
Industrial Gigabit PoE+ Injector 12~48VDC 30W per Port DIN-Rail Mount
Overview
The LNK-INJ301 is a hardened industrial Gigabit PoE+ injector that delivers both data and
power over a single Ethernet cable. Supporting IEEE 802.3af/at devices, it allows non-PoE
switches to connect PoE cameras or access points up to 100 meters. Designed for harsh
environments, it operates from -40°C to 80°C and features a wide 12~48VDC input range,
DIN-Rail and wall-mount support, and built-in surge/ESD protection for reliable industrial
deployments.
Features
Wide Voltage Range: 12~48VDC input for high availability
High-Power PoE+: Up to 30W per port (IEEE 802.3at)
Gigabit Ethernet Support: 10/100/1000Base-TX, forward/filter at 1.488Mpps
Industrial Reliability: Hardened aluminum case, -40°C to 80°C operation
Flexible Mounting: DIN-Rail or wall installation
Protection & Diagnostics: Surge and ESD protection, extensive LED indicators
Technical Indexes
|
Standards: |
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Connector: |
2x RJ45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
12~48VDC (Terminal Block) |
|
Power Consumption: |
36W Max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE802.3af/at |
|
Port: |
RJ45 |
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
Max. Power per Port: |
30W Max per port (Alternative B Mode) |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500V |
|
|
ESD: 4KV/8KV |
|
Ordering Information
|
Model |
Description |
|
LNK-INJ301 |
12~48VDC Power Input Industrial Gigabit PoE+ Injector |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
|
Power Options |
► Power Supply is to be purchased separately |

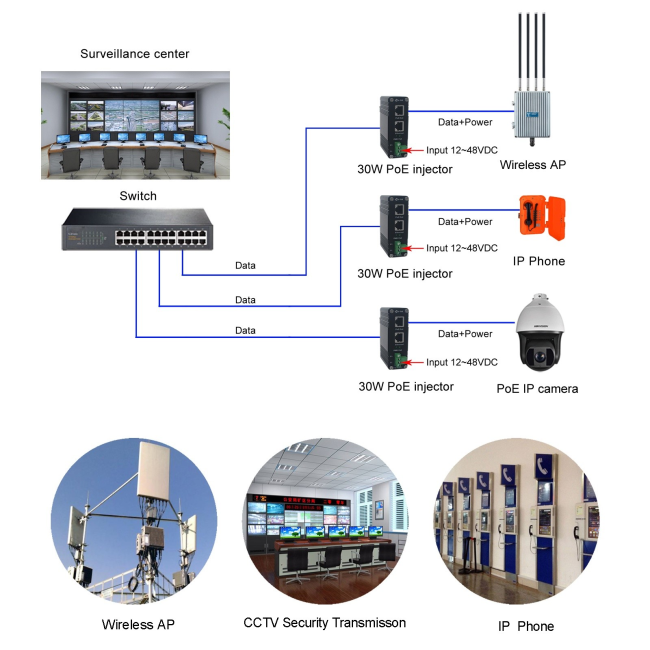

Application
