Industrial 1-Port PoE+ to 4-Port Gigabit PoE Extender 400m Cascade
Industrial 1-Port PoE+ to 4-Port Gigabit PoE Extender 400m Cascade
Overview
The LNK-IPE104-30 is an industrial-grade PoE extender that converts one 802.3at PoE+
input into four PoE outputs. It extends both power and data transmission up to 200m per
unit, with daisy-chain support of up to three devices for a total reach of 400m. Ideal for
multi-point deployments in surveillance, wireless AP, and IoT networks without additional
cabling or power adapters.
Features
1-to-4 PoE Extension – Expands a single PoE+ input into four PoE outputs
Long-Distance Power & Data – Extends Ethernet and PoE up to 200m per unit
Cascade up to 3 Units – Achieve a total PoE+ reach of 400m (1312 ft.)
High Power Support – Delivers up to 25.5W shared budget across 4 ports
Industrial Durability – IP40 aluminum housing, -40°C to 80°C operation
Plug-and-Play Deployment – No external power adapter required
Robust Protection – 6KV surge and 8KV ESD immunity for field reliability
Technical Indexes
|
Ethernet Port |
|
|
PoE Input Port |
10/100/1000Base-TX RJ45, IEEE 802.3at PoE Input Input Power 50~57V DC, Max 30W |
|
PoE Output Port |
1*10/100/1000Base-TX RJ45, IEEE 802.3af/at PoE Output Output Power: Max 25.5W in total, 25.5W@ 101m, 20W@ 200m |
|
Cascade connection |
Support 3 grade |
|
Power over Ethernet |
|
|
PoE Standard |
IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
|
PoE Power Supply Type |
Mid-span and End-span |
|
PoE Pin Assignment |
1/2(+), 3/6(-),4/5(+), 7/8(-) |
|
Switch Property |
|
|
Standards |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control |
|
Forwarding Modes |
Store and Forward |
|
Transmission Distance |
100m |
|
MAC Table |
8K |
|
Switching Capacity |
10Gbps |
|
Packet Forwarding Rate |
14.88Mpps |
|
Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
|
Jumbo Frame |
10K bytes |
|
Environment |
|
|
Surge Immunity |
6KV, Standard: IEC6000-4-5 |
|
ESD Protection |
6KV 1a Contact Discharge Level 3, 8KV 1b Air Discharge Level 3, Standard: IEC61000-4-2 |
|
Protection Level |
IP 40 |
|
Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
|
Operating Humidity |
0~95% (non-condensing) |
|
Physical Parameter |
|
|
Dimensions (WxDxH) |
95 x 70 x 30 mm |
|
Weight |
0.25Kg |
|
Casing |
Aluminum Case |
|
Mounting Options |
DIN-Rail / Wall-mount |
|
Certifications |
|
|
Certifications |
CE, FCC, RoHS |
Ordering Information
|
Model |
Description |
|
LNK-IPE104-30 |
Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |

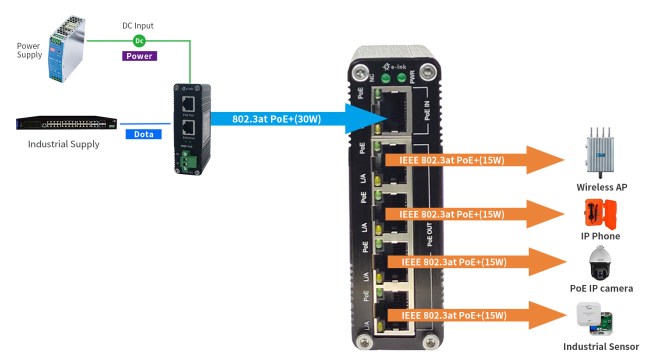

Application

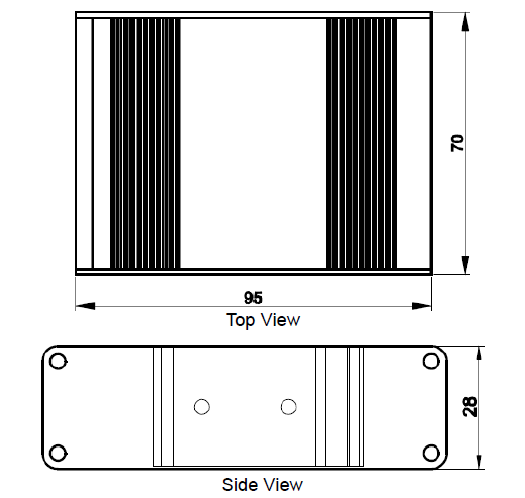

Dimension
