Ultra-Compact USB-Powered Gigabit Ethernet to Fiber Media Converter
Ultra-Compact USB-Powered Gigabit Ethernet to Fiber Media Converter
Overview
The LNK-M3011 is a micro-sized Gigabit Ethernet media converter designed for flexible
fiber extension. With USB power input and dual-mode 100/1000Base-FX support, it
provides an easy, portable, and reliable copper-to-fiber conversion for networking
applications up to 120km.
Features
Ultra-compact design – fits easily into tight spaces or integrated systems
USB-powered (5VDC) – ideal for mobile and portable applications
RJ45 + SC port – auto-detect 10/100/1000Base-T to 100/1000Base-FX
Extended fiber reach – up to 120 km via single-mode fiber
Auto MDI/MDI-X & duplex sensing – simplifies installation
Supports 9K jumbo frames – improves data throughput
Technical Indexes
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps Gigabit Ethernet |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
|
Fiber Port |
1 SC Fiber Port, 100Base-FX or 1000Base-X dual mode (auto detection) |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission distance |
multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m |
|
Port |
One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm) Single mode Dual-fiber: SC (9/125μm) Single mode Single fiber: SC (9/125μm) |
|
Conversion means |
Media conversion |
|
LFP |
Not Support |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action) |
|
Power supply |
DC 5V (Type-C) |
|
Power consumption |
3W |
|
Operating temperature |
0~45ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions (W x D x H) |
62 x 44 x 18 mm |
Ordering Information
|
Model |
Description |
|
LNK-M3011 |
Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, demi-monde, 500m, 850nm, SC, standalone, external power adaptor |
|
LNK-M3011-20 |
Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor |
|
LNK-M3011S-20A |
Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1310nm TX/1550nm RX, SC, standalone, external power adaptor |
|
LNK-M3011S-20B |
Micro type Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM (single fiber bi-direction), 20km, 1550nm TX/1310nm RX, SC, standalone, external power adaptor |

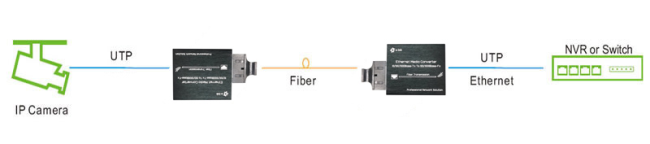

Application
