Micro Mini USB-Powered Gigabit Ethernet to SFP Fiber Media Converter
Micro Mini USB-Powered Gigabit Ethernet to SFP Fiber Media Converter
Overview
The LNK-M3011-SFP is an ultra-compact Gigabit media converter that seamlessly connects
copper and fiber networks. Featuring USB power input, wide-range DC support, and SFP
flexibility, it delivers portable, energy-efficient, and long-distance connectivity up to 120 km.
Ideal for fiber-to-laptop and space-constrained networking environments.
Features
Smallest form factor – lightweight, only 46g, fits behind any PC
Flexible SFP slot – supports 100/1000M, multi-/single-mode fiber
Dual power options – USB-powered (plug-and-play) or 5–15VDC input
Energy saving – auto shutdown when host device powers off
High performance – supports 9K jumbo frames, low BER <10⁻⁹
Rugged design – aluminum casing for durability and heat dissipation
Extended fiber reach – up to 120 km with the right SFP module
Technical Indexes
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps Gigabit Ethernet |
|
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
|
Fiber Port |
SFP - 100/1000M adaptive |
|
Wavelength |
850nm/1310nm/1550nm (Based on SFP Module used) |
|
Transmission distance |
Fiber Cable: Depends on SFP Module Category-5 twisted pairs: 100m |
|
Port |
One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One Optical port: SFP |
|
Conversion means |
Media conversion |
|
LFP |
Not Support |
|
BER |
<10-9 |
|
MTBF |
100,000 hours |
|
LED indicator |
PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action) |
|
Power supply |
DC 5~15V (Type-C) |
|
Power consumption |
<3W |
|
Operating temperature |
0~45ºC |
|
Operating humidity |
5%~90% |
|
Maintaining temperature |
-40~70ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Weight |
46g |
|
Dimensions (W x D x H) |
78 x 27 x 18 mm |

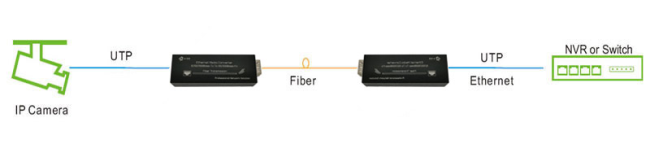

Application
