Overview
The LNK-POE200AT is a compact, high-performance 30W PoE injector designed to power
IP cameras, access points, VoIP phones, and other IEEE802.3af/at devices. With
plug-and-play installation, it delivers reliable 48V power and data transmission up to 100m,
ensuring stable performance in surveillance and enterprise networks.
Features
High Power Output – Provides up to 30W PoE over Cat5/5e/6 cables
Wide Compatibility – Supports IEEE802.3af/at compliant devices
Secure & Stable – Built-in surge, over-voltage, and short-circuit protection
Energy Efficient – Low standby power consumption <0.5W
Plug & Play – No configuration required, simple installation
Compact Design – Lightweight plastic casing, ideal for desktop use
Technical Indexes
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
148,800pps (100Mbps) |
|
Cabling: |
10/100Base-T: Cat5 or above |
|
Maximum Distance: |
IEEE802.3af/at PoE (30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |
|
Connector: |
LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320 C13 |
|
Environmental |
|
|
Operating Temperature: |
-10°C to 50°C (14°F to 122°F) |
|
Storage Temperature: |
-20°C to 70°C (-4°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Voltage Range: |
100-240V AC @50/60Hz. |
|
Output Voltage: |
DC 48V |
|
Power Consumption: |
30 watts max. |
|
PoE (Power over Ethernet) |
|
|
Standard: |
IEEE 802.3af |
|
IEEE 802.3at |
|
|
Port: |
RJ45 |
|
Pin Assignment |
Data provide over pairs 1/2(+) and 3/6(-) Power over spare pairs 4/5(+) and 7/8(-) |
|
PoE Power Output |
DC 48V/30-watt PoE via 2-pairs |
|
LED Indicators |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (W×D×H): |
145 x 58 x 39mm |
|
Weight: |
0.25Kg |
|
Casing: |
Plastic Case |
|
Mounting Options: |
Desktop |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
Ordering Information
|
Model |
Description |
|
LNK-POE200AT |
PoE Injector with Power Cord: 10/100Mbps, IEEE 802.3at 30W |

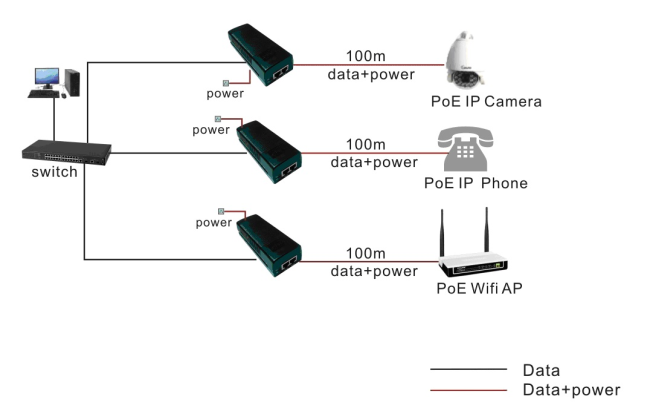

Application

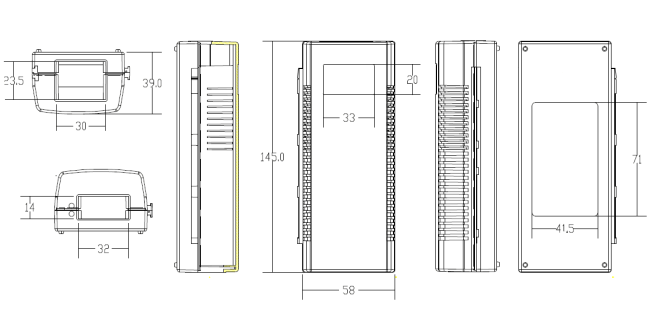

Mechanical
