36-72VDC to 24V 24W Gigabit Passive PoE Injector DC-DC Converter
36-72VDC to 24V 24W Gigabit Passive PoE Injector DC-DC Converter
Overview
The LNK-DC-P24G is a compact, high-efficiency DC to DC converter with integrated Gigabit
Passive PoE injector. Designed to operate from a 36–72VDC power source, it delivers a
stable 24V/24W passive PoE output for powering access points, IP cameras, and wireless
devices. With built-in surge, overload, and over-temperature protections, this rugged solution
ensures reliable operation in enterprise and industrial environments.
Features
Wide input range: 36–72VDC with regulated 24V output.
High power output: up to 24W passive PoE.
Supports Gigabit Ethernet (10/100/1000Base-T) for seamless data + power.
Multiple protections: OVP, OLP, OTP & short-circuit protection.
Plug-and-play with automatic detection of non-standard terminals.
Compact & lightweight plastic case with desktop mounting option.
Dual (+) input terminals allow primary & backup power source connection.
Fanless design with >85% power efficiency.
Technical Indexes
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
10/100/1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat. 5, 5e, 6 up to 100m (328ft) |
|
Connector: |
LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port |
|
Environmental |
|
|
Operating Temperature: |
-10°C to 50°C (14°F to 122°F) |
|
Storage Temperature: |
-20°C to 70°C (-4°F to 158°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Voltage Range: |
36-72V DC |
|
Output Voltage: |
DC 24V, 1.0A |
|
Power Consumption: |
24 watts max. |
|
Passive PoE (Power over Ethernet) |
|
|
Port: |
RJ45 |
|
Power Pin Assignment |
Pin 1,2 / 4,5 (+), Pin 3,6 / 7,8 (-) |
|
LED Indicators |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (W×D×H): |
122 x 60 x 40mm |
|
Weight: |
0.35Kg |
|
Casing: |
Plastic Case |
|
Mounting Options: |
Desktop |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
Ordering Information
|
Model |
Description |
|
LNK-DC-P24G |
36-72VDC IN, 24V 24W Gigabit Passive PoE OUT, DC to DC Converter and PoE Injector |

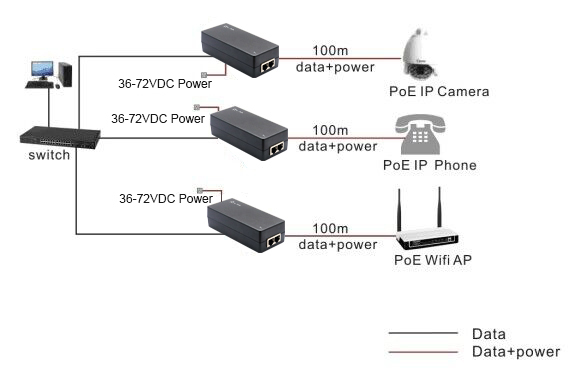

Application
