Industrial PoE Injector 10/100/1000M/2.5G/5G 30W/Port with M12 connector Compliant with EN50155 Standard

EN50155 Industrial 10/100/1000M/2.5G/5G 30W PoE Injector with M12 connector

 Industrial EN50155 30W PoE+ Injector Overview

The LNK-INJ501-30 is a ruggedized 5G PoE injector that delivers high-speed connectivity and reliable

power over extended distances. It enables the seamless integration of IEEE 802.3af/at PoE devices,

such as cameras and access points, with non-PoE LAN switches.

With both Ethernet (to switch) and PoE Out (to device) ports that comply with the IEEE 802.3ab

and IEEE 802.3at standards, this injector guarantees compatibility with 10/100/1000/2.5G/5G Base-T

networks. Built for high-availability applications, the LNK-INJ501-30 offers a wide voltage input

range (12–48 VDC) for robust and flexible power management in demanding environments.

   Industrial EN50155 30W PoE+ Injector Features

• Wide-range 12~48V DC power input for flexible deployment
• Support 10/100/1000/2.5G Base-TX for power and data output
• Use M12 connectors (A-Coding or X-Coding)  to ensure tight and robust connections
• Comprehensive LED indicators for real-time PoE status and diagnostics
• Industrial-grade design with operating temperature from -40°C to 80°C (-40°F to 176°F)
• Compact size: 95 × 70 × 30 mm, ideal for space-limited environments
• Durable aluminum alloy housing for superior heat dissipation and anti-interference performance
• Flexible installation options with DIN-rail and wall-mounting support

  Industrial EN50155 30W PoE+ Injector Technical Indexes

  Industrial EN50155 30W PoE+ Injector Ordering Information

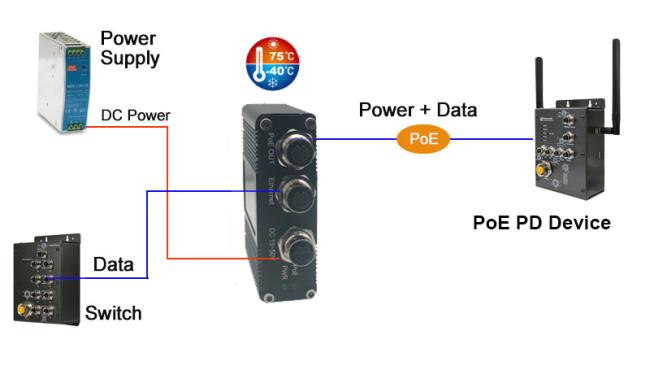

 Industrial EN50155 30W PoE+ Injector Application
