HDMI Optical Fiber Extender 1080p Full HD 20km Transmission Ethernet Port
1-Ch HDMI Video + 1-Ch 10/100M Ethernet over Fiber Extender
HDMI over Fiber Extender Overview
The LNK-HD-FE HDMI over Fiber Extender is a professional-grade solution for transmitting high-definition
signals over long distances. It effortlessly extends uncompressed 1080p HDMI audio and video signals
up to 20 kilometers over a single simplex fiber optic cable. The extender guarantees zero latency
and delivers pristine, crystal-clear images without signal degradation. With built-in bi-directional IR
control for remote management and an Ethernet pass-through channel for network connectivity,
the LNK-HD-FE is the ideal all-in-one system for professional AV installations, large venues,
and mission-critical applications where reliability and superior image quality are paramount.
HDMI over Fiber Extender Features
►Auto-adaptive input signal sampling frequency from 32 kHz to 100 kHz
►Delivers high-resolution image quality for superior viewing experience
►Plug-and-play design with no programming or setup required
►Extends 1080p HDMI signals up to 20 km via optical fiber
►Optical transmission eliminates RF interference for stable performance
►Ethernet pass-through support for seamless network integration
►Built-in IR remote control for convenient operation
HDMI over Fiber Extender Technical Indexes
|
Operating Temperature |
-5°C to 35°C(23°F to 95°F) |
|
Storage Temperature |
-10°C to 70°C(14°F to 158°F) |
|
Operating Humidity |
10 to 90%RH (No Condensation) |
|
Storage Humidity |
5 to 90%RH (No Condensation) |
|
Fiber Module |
1310nm Single Mode Transmitter & Receiver |
|
Fiber Connector |
SC Duplex Connector |
|
Transmission Distance |
1080P 36bit @60Hz 20Km(Maximum) |
|
Power consumption |
TX:8watts; RX:8watts((Maximum) |
|
IR wavelength &frequency |
Wavelength:940nm,frequency 38kHz |
|
Dimension (L×W×H) |
TX & RX: 154x99.5x27mm |
|
Net Weight |
Transmitter:410g, Receiver:410g, |
|
LED Indicators |
Power, Link/Act and Speed |

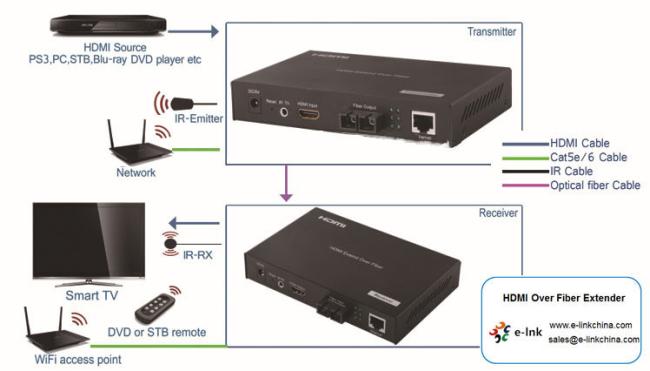

HDMI over Fiber Extender Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
