Industrial 10G PoE+ Injector 30W IEEE802.3at 12–48VDC Wide Input
Industrial 10G PoE+ Injector 30W IEEE802.3at 12–48VDC Wide Input
Overview
The LNK-INJ601-30 is a rugged industrial-grade 10G PoE+ injector designed to power and connect
devices such as IP cameras, access points, and IoT terminals. Supporting 10/100/1000/2.5G/5G/10G
Base-T, it ensures ultra-fast data transfer and stable 30W PoE+ output. With its 12–48VDC wide
input design, aluminum alloy casing, and extended operating temperature range (-40°C to +80°C), this
injector delivers high performance and durability in mission-critical environments.
Features
10G Network Ready – Supports 10/100/1000/2.5G/5G/10G Base-T for maximum throughput.
PoE+ Power Delivery – Provides up to 30W output compliant with IEEE 802.3af/at.
Flexible Power Input – Operates on 12–48VDC for diverse installation needs.
Rugged Design – Compact aluminum housing with IP-rated durability.
Industrial-Grade Reliability – Works in extreme climates -40°C to +80°C.
Easy Deployment – DIN-rail and wall-mount options for versatile installation.
Diagnostics Made Simple – LED indicators for instant power & PoE status check.
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 14,880,000pps (10Gbps) |
| Cabling: | 10/100/1000/2.5G/5G/10G Base-T: Cat7 or above |
| Maximum Distance: | Cat7 UTP up to 30m |
| Connector: | 2x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 36W Max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| LED Indicators: | |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A | |
| EN55022:2006+A1: 2007 Class A | |
| Surge Protection: | |
| RJ45: 1KV | |
| Power: 500V | |
| ESD: 4KV/8KV | |
Ordering Information
| Model | Description |
| LNK-INJ601-30 | 12~48VDC Power Input Industrial 10G PoE+ Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |

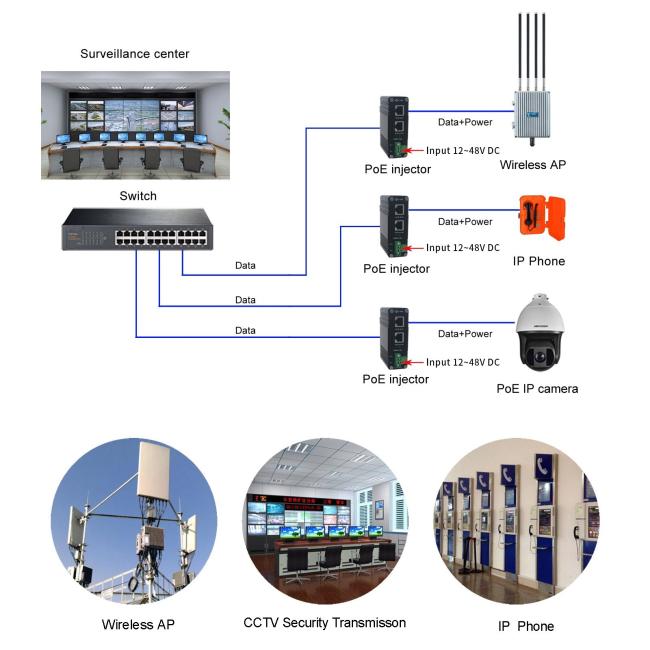

Application
