Industrial 10G PoE+ Injector 60W High Power 12–48VDC Wide Input
Industrial 10G PoE+ Injector 60W High Power 12–48VDC Wide Input
Overview
The LNK-INJ601-60 is a high-performance 10G industrial PoE+ injector designed to power network
devices such as IP cameras, access points, and IoT equipment. Delivering up to 60W PoE output, it
ensures stable connectivity for high-bandwidth applications. With 12–48VDC wide-range input, compact
aluminum housing, and an operating range of -40°C to +80°C, it provides reliability in harsh industrial
environments.
Features
10G Ultra-Speed Support – Compatible with 10/100/1000/2.5G/5G/10G Base-T.
High-Power PoE+ Output – Supplies up to 60W per port (IEEE 802.3af/at).
Wide Input Range – Operates on 12–48VDC with low power consumption.
Compact & Rugged – Aluminum alloy case, 95 × 70 × 30 mm, lightweight design.
Industrial-Grade Build – Reliable in -40°C to +80°C extreme climates.
Plug-and-Play – Easy deployment with DIN-rail and wall-mount installation.
Clear Status Monitoring – LED indicators for power and PoE diagnostics.
Technical Indexes
| Ethernet | |
| Standards: | IEEE802.3af Power over Ethernet |
| IEEE802.3at Power over Ethernet | |
| Processing Type: | Forward |
| Half-duplex, Full-duplex | |
| Forward Filter Rate: | 14,880,000pps (10Gbps) |
| Cabling: | 10/100/1000/2.5G/5G/10G Base-T: Cat7 or above |
| Maximum Distance: | Cat7 UTP up to 30m |
| Connector: | 2x RJ45 |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF: | >200,000hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC (Terminal Block) |
| Power Consumption: | 65W Max. |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Max. Power per Port: | 60W Max per port (Alternative B Mode) |
| LED Indicators: | |
| Power: | Power Status |
| PoE: | PoE Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| FCC part 15, Class A | |
| EN55022:2006+A1: 2007 Class A | |
| Surge Protection: | |
| RJ45: 1KV | |
| Power: 500V | |
| ESD: 4KV/8KV | |
Ordering Information
| Model | Description |
| LNK-INJ601-60 | 12~48VDC Power Input Industrial 10G 60W PoE Injector |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately |

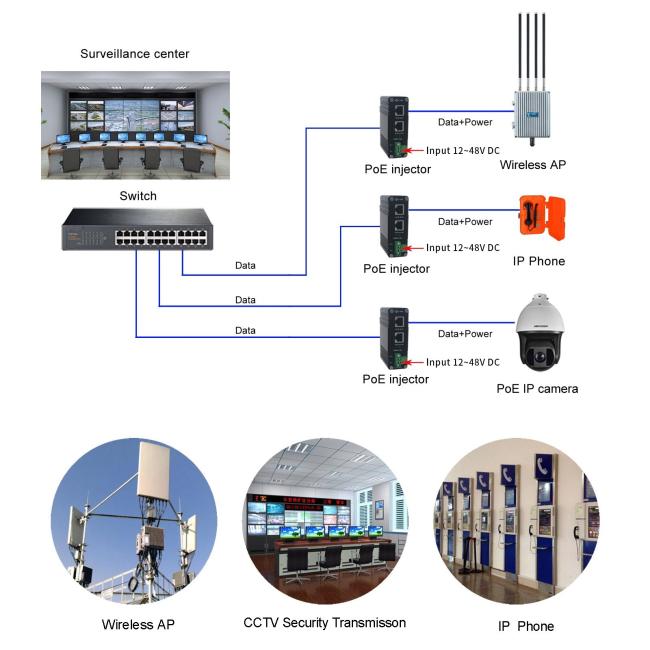

Application
