DVI Fiber Extender with RS232 Bi-Directional Audio 1080P up to 20km

Overview

The LNK-DVI-1D1BA Fiber Optic Extender enables long-distance transmission of DVI video, RS232

control signals, and two-way stereo audio over a single optical fiber. Supporting resolutions up to

1920×1200 @60Hz with special handling for 1600×1200 @60Hz, it ensures stable, clear, and secure

video performance. With automatic adjustment, HDCP compliance, and robust ESD protection, this

compact extender is ideal for AV integration, broadcasting, command centers, and industrial

display applications.

Features

Extend DVI video up to 20km via single-mode optical fiber

Supports resolutions up to 1920×1200 @60Hz with 1600×1200 @60Hz enhancement

Bi-directional stereo audio transmission via 3.5mm interface

RS232 control signal support with baud rate up to 115200bps

HDCP 1.2 compliant for secure video distribution

Automatic image adjustment ensures smooth and stable output

Built-in ESD protection for reliable system integration

Compact, lightweight design with low power consumption (<4W)

Plug-and-play setup for fast deployment

Technical Indexes

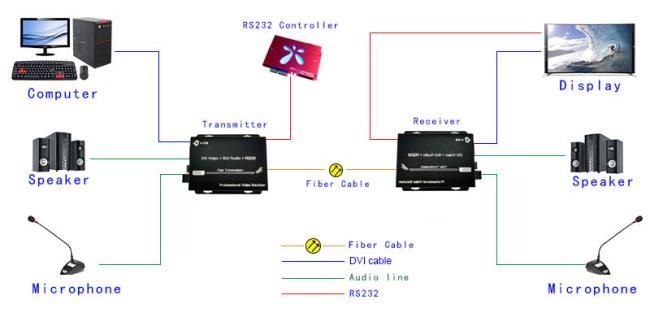

Application
