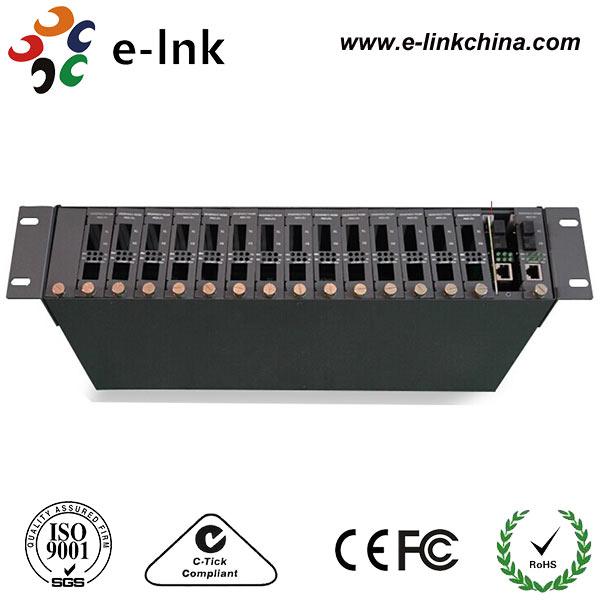

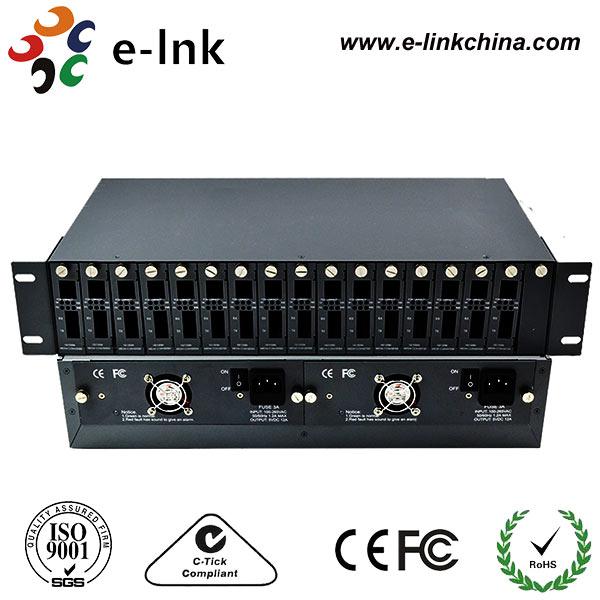

19 Inch 2U Rack Structure 16Ch Fiber Ethernet Media Converter Chassis with Dual Power Supply
19 Inch 2U Rack Structure 16Ch Fiber Ethernet Media Converter Chassis with Dual Power Supply
Model: LNK-R16 Series
Overview
LNK-R16 is a kind of cost-effective media converter rack (2U) widely used in the equipment room. Different types of module type media converter developed by our company can be inserted into this rack, which total slots up to 16. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over.
Features
l The configuration of active/standby power supply ensures uninterruptible operation of the system.
l Provide two power supplies (AC 220V, and DC -48V), enabling the system can work under many operating environments;
l Supporting simultaneous operation of several module type (module type) media converters at different rates, which greatly improves system adaptability;
l Supports hot swapping;
l Applicatory module types: LNK-R16: LNK-102F series, LNK-R16D: LNK-2100P series, and LNK-3011P series.
Technical Indexes
| Parameter | Specifications |
| Number of slots | 16 |
| Structure | 2U rack |
| Power input | AC Voltage: AC 85~265V; frequency: 50/60 Hz |
| DC voltage: DC-36~72V | |
| Power output | DC5V 16A |
| Ripple | ≤20mv |
| Power configuration |
Single power supply; or Dual power supply for warm backup mode |
| LED indication | POWER (power supply) |
| Max. power consumption | 95W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Maintaining temperature | -40~70ºC |
| Maintaining humidity | 5% ~ 90% non-condensing |
