16-Slot 19" 2U CCTV Fiber Optic Video Converter Rack Chassis
16-slot 19" 2U Video Converter Rack for CCTV Fiber Optic Converter
Model: LNK-V16 Series
Overview
LNK-V16 Series is a kind of cost-effective video converter rack (2U) widely used in the equipment room. 1-2 channel card type video converter developed by our company can be inserted into this rack, which total slots up to 16. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over. All of the card-type video converters installed in the chassis are hot swappable, which makes it unnecessary to power-down the chassis when replacing card-type video converters.
Features
- The configuration of active/standby power supply ensures uninterruptible operation of the system.
- Provide two power supplies, enabling the system can work under many operating environments;
- Supporting simultaneous operation of 1Ch or 2Ch Card-type Video Converters, which greatly improves system adaptability;
- Supports hot swapping;
Technical Indexes
| Parameter | Specifications |
| Number of slots | 16 |
| Structure | 19” 2U rack |
| Card-type video converter support | 1Ch or 2Ch |
| Power input | AC Voltage: AC 100~260V; frequency: 50/60 Hz |
| Power output | DC5V |
| MTBF | > 100,000 hours |
| Power configuration |
Single power supply; or Dual power supply for warm backup mode |
| Dimension (mm) | 423x230x90 |
| Weight | 5.4KG |
| LED indication | POWER (power supply) |
| Operating temperature | -30°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Relative humidity | 5%~90% (non condensing) |
Contact Information:
Email: sales(at)e-linkchina(dot)com
Tel: +86 755 83128674
Skype: elinkchina003
WhatsApp: +8613926522845

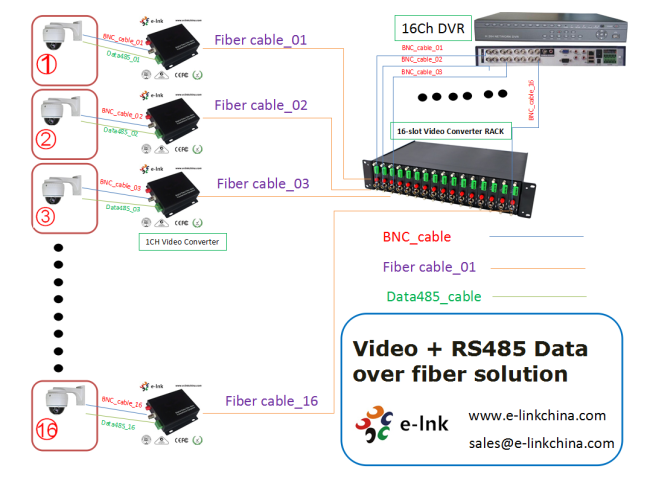

Application Diagram:
