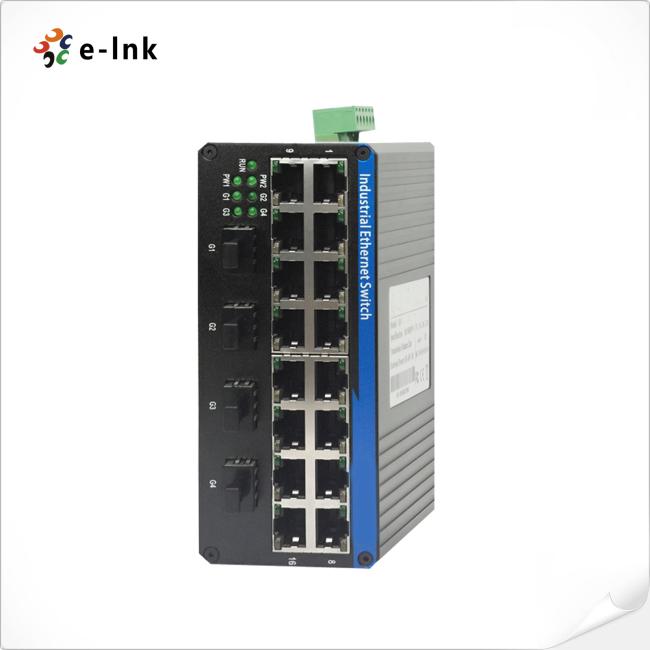

16-port 10/100Base-T + 4-port 1000BASE SFP Industrial Ethernet Switch
Product: 16-port 10/100Base-T + 4-port 1000BASE SFP Industrial Ethernet Switch
Model: LNK-GY416-SFP Series
Overview
LNK-GY416-SFP Series Hardened Industrial Ethernet Switch is specially designed for industrial application, which provides fast and stable media conversion between 16x10/100BaseT(X) and 4x1000BaseFX. It also meets the requirements of long distance, high speed, and wide broadcast.
With wide range operation temperature, alloy aluminum shell and other excellent industrial-grade design against vibration and shock, it could keep your industrial automation applications running continuously in different harsh environments.
Features
16x10/100Base-TX ports and 4x1000Base-FX ports
10/100M auto-negotiation , Full/Half duplex mode, auto-MDI-MDI-X
SFP Fiber Port can be SMF, MMF
Super lightening protection, IP40 protection
Excellent heat elimination without cooling fan
Redundant dual DC power inputs
-40℃-80℃ operating temperature range
Technical Indexes
| Parameter | Specifications |
| Standard | IEEE 802.3 for 10Base-T, IEEE 802.3u for 100Base-TX and 100Base-FX, IEEE 802.3x for Flow control |
| Switch Properties |
MAC Table Size: 2K Packet Buffer Size: 1Mbit Processing Type: Store and Forward Exchange Properties: 148800pps (100M) |
| RJ45 port rate | 16 x RJ45 Ports: 10/100BaseT(X) auto connection, Full/Half duplex or force work mode, and support MDI/MDI-X connection |
| Fiber Ports | 4 x 1000BASE-SFP ports |
| Transmission |
Twisted pair: 100m (Standard CAT5/CAT5e cable) Fiber: Depends on SFP |
| Power Input options |
Input Voltage: 24VDC(18~36V DC), Redundant dual inputs Opposite connection protection |
| Environmental Limits |
Operating Temperature: -40℃ to +80℃ Storage Temperature: -45℃ to +85℃ Relative Humidity: 5% to 95% (non-condensing) |
| Mechanical Dimension |
Dimensions:138 x 112 x 60 mm (LxWxH) House Protection: IP40 protection, Aluminium Alloy Installation: DIN-Rail or wall mounting Weight: 670g |
| Approvals |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: • EN61000-4-2 (ESD),Level 3 • EN61000-4-3 (RS),Level 3 • EN61000-4-4 (EFT),Level 3 • EN61000-4-5 (Surge),Level 3 • EN61000-4-6 (CS),Level 3 • EN61000-4-8,Level 3 Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
