L2 Managed 8-Port 1G/10G Base-T + 2-Port 10G SFP+ Gigabit Ethernet Switch

Model: LNK-M8G2F Series

Overview

E-link LNK-M8G2F L2 Managed 8+2+1+1 10Gigabit Data Center Switch is a standard 2-layer non-blocking switch. Providing 200Gbps switching capacity, the highest performance (1U TOR) in the industry, with 148.8Mpps forwarding performance, L2/L3 full wire-speed forwarding. With the modular design, it provides 8 1G/10G RJ45 ports, 2 10G SFP+ optical ports, 1 Console port, 1 OOB management port, which offers enough bandwidth for data aggregation and data exchange.

In order to flexibly respond to the network requirements, users can select appropriate 10G ports according to their needs, ensure the stability of the network and the balance of the load link. With high bandwidth and low latency, pipe network. 8+2+1+1 switches located in density of the next generation of data center and cloud computing network access, can also be used for large Internet cafes, the core of enterprise network, metropolitan area network, or gathering.

Features

High density 10G access, performance is remarkable

(1)with 200Gbps backplane capacity, the industry the highest performance (1U TOR);

(2)hardware routing, the packet forwarding rate of the wire speed layer 3 switching has reached 148.8Mpps, L2 / L3 full speed forwarding;

(3)8 1G/10G RJ45 ports, 2 10G SFP+ optical ports, the highest density (1U TOR), meet the demand of high-density 10G server access.

Wind direction flexible choice, green and energy saving

Innovative energy-saving technology: using the latest energy-saving chip, fan speed control scheme of intelligent, supports real-time detection power consumption, reduce operational cost for the customer, create green data center.

Convenient in operation and maintenance

(1)Management support with Web, SNMP and Telnet;

(2)Support XModem protocol, use TFTP/ZMODEM to software upgrading and BootRom upgrading;

(3)support SFP+, also backwards compatible XFP;

(4)Support 10G Base-T, be compatible with 1000M/100M Base-T. Max forwarding distance can reach 100M with Cat6.

Technical Indexes

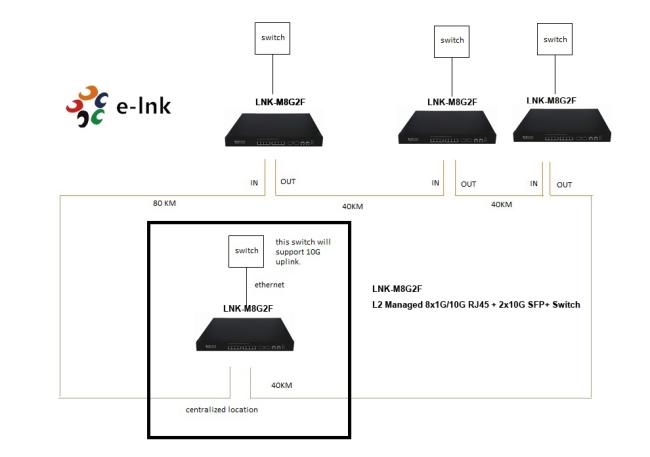

Application
