Single Mode SDI To Fiber Optic Converter 1 Channel RS485 Reverse Data 20km 12 Watt
1 Channel RS485 Reverse Data 20km Single Mode 8 Channel SDI to Fiber Optic Converter
Technical Indexes
| Serial TV, BNC Input | SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom | |
| 270Mbit/s - 1.48Gbit/s | ||
| Input number:8 | ||
| Reflection loss: >15DB | ||
| Equilibrium: 0-150m @1.485Gb/s | ||
| Connector: FC/PC(SC/PC optional) | ||
| Optics | Channel: 1 | |
| Type: single-mode (multimode optional) | ||
| Wavelength: 1310nm /1550nm | ||
| Transmission distance (550m-120Km | ||
| Reflection loss: > 15dB | ||
| Dithering: < 0.2UI | ||
| Connector: FC/PC (SC/PC optional) | ||
| Serial TV, BNC output (EO/OE) | Output number:8 | |
| Signal level: 800mV nominal | ||
| Rise/fall time: 200ps indication | ||
| Overshoot: < 10% amplitude | ||
| Reflection loss: >15dB | ||
| Dithering: < 0.2UI | ||
| Connector: 75Ω BNC | ||
| Data | Channel: 1 | |
| Data format: Reverse RS-485 (full/half duplex) and support NRZ, RZI and Manchester | ||
| Data rate: DC to 100 Kb/s | ||
| Mode: Full/half duplex | ||
| Connector: wire connecting terminal | ||
| Power and environmental indication | Operating temperature: -40℃～＋85℃ | |
| Pressure: 1A@12VDC | ||
| Power: 12 W | ||
| EMI/RFI: meet FCC Part 15 Class A, EU EMC standard | ||
| Average time trouble-free: >100000 hours | ||
| SDI video format supports | 625/25PAL;525/29.97NTSC;525/23.98NTSC; 720p50; 720p59.94; 1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94; | |
Overview

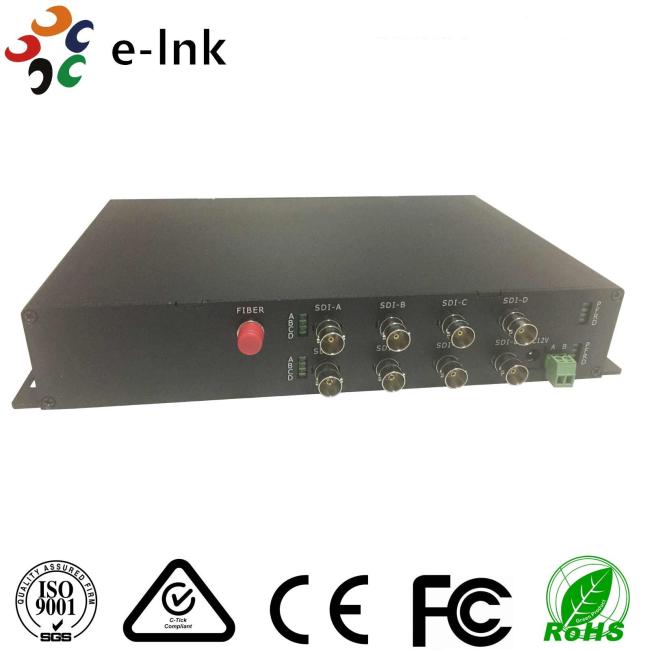

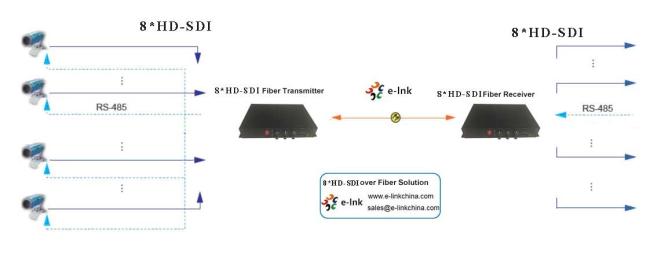

LNK-SDI-8V Series supports 8-channel HD-SDI standard high-definition video signal transmitted via single fiber optical cable. E-link HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P HD-SDI signal. E-link HD-SDI Fiber Converters can simultaneously transmit 8-Ch HD-SDI Video, 1-Ch Reverse RS-485 data, signal through a single optical fiber. The video quality up to broadcast standard, audio quality up to CD level, supports Reverse RS-485 data communication format.
Features
- 8 channel HD-SDI video transmission over optic fiber
- Automatic cable equalization to ensure signal integrity
- Automatic reclocking 270Mbit/s - 1.48Gbit/s
- Directly compatible with HD-SDI camera systems and support Reverse RS-485 data protocols
- Long transmission capability at least 10 km (6.2miles) , up to 80 km
- Terminal block power input for industrial application
- Supports hot swapping and hot plugging
- Full digital non-compression broadcast level transmission;
- super optic dynamic range and free of adjustment prior to use;
- surface coating technique;
- fiber optic WDM/CWDM/DWDM technique;
- 1000M optical fiber transmission, easy for update;
- industry level ultra-broad temperature range (-40℃~+85℃), adaptable to various environments;
Application
- Intelligent HP monitoring & HD multiple-media system
- Community safety & security HD multi-media system and campus network
- Industrial monitoring (power, chemical industry, steel, oil and railway etc.)
- Military monitoring (warehouse, border of defense and security guarding etc.)
- HD multi-media system for transmission of TV programs
- Stadium (HD audio & video synchronized transmission for live telecast),
Ordering Information
| LNK-SDI-8V | 8-Ch SDI Video, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-SDI-8V1R | 8-Ch SDI Video + 1-Ch RS485 Reverse Data, 20km, SM, FC, including 1 transmitter & 1 receiver, used by pairs |
